X-CUBE 90 with Elite, the leadership model of the X+ Architecture platform, has evolved to higher diagnostic confidence.
This refinement is achieved through enhanced image performance on a more powerful(or robust) GPU
and a immersive experience with its newly designed 23.8” bezel-less monitor.

Download Catalog

Clinical Image

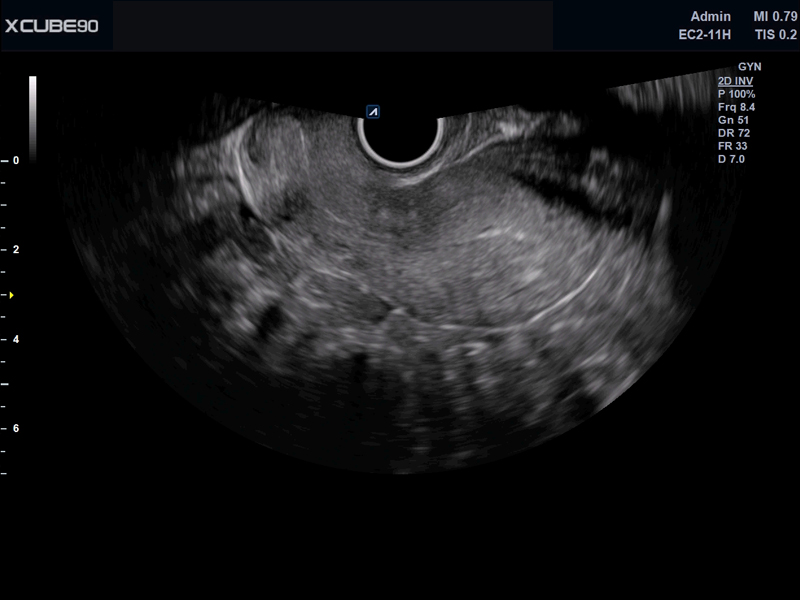

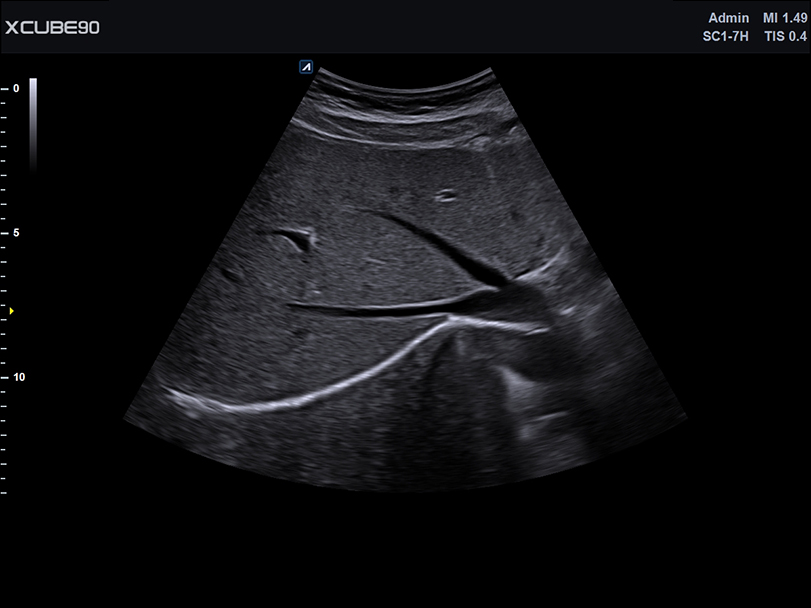

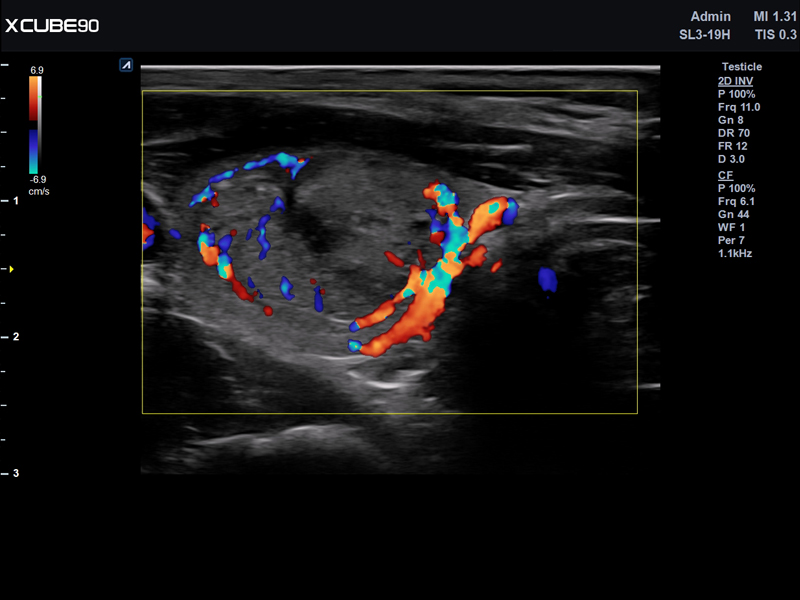

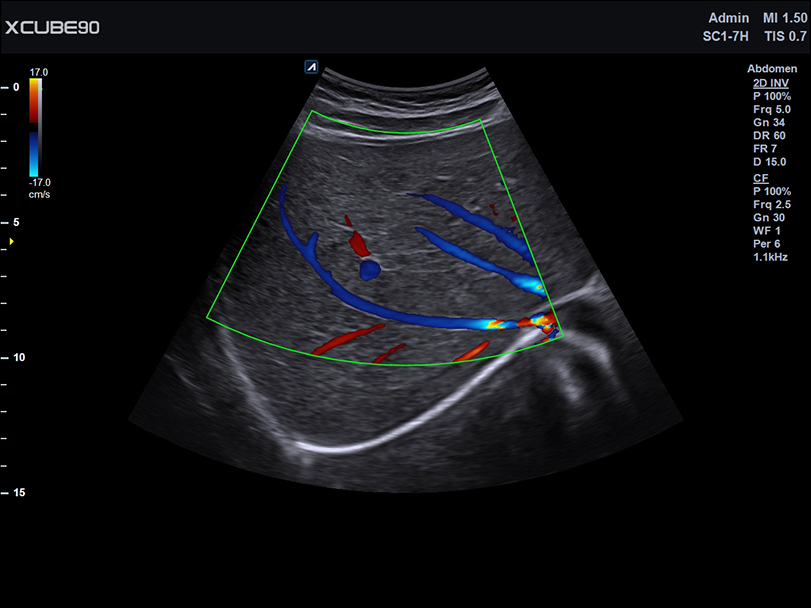

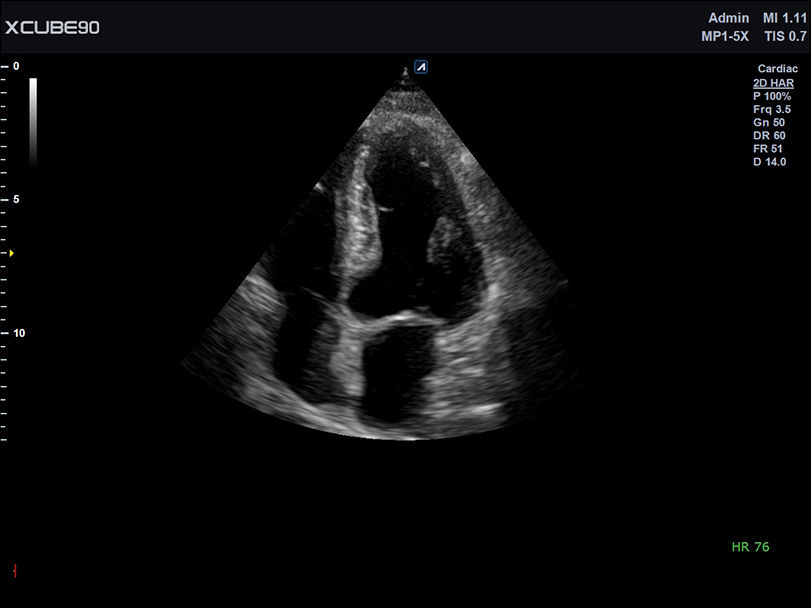

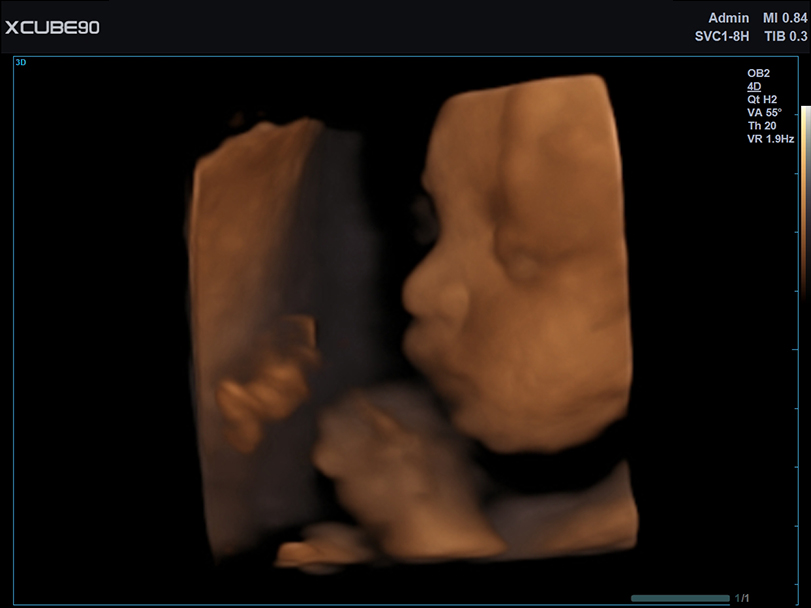

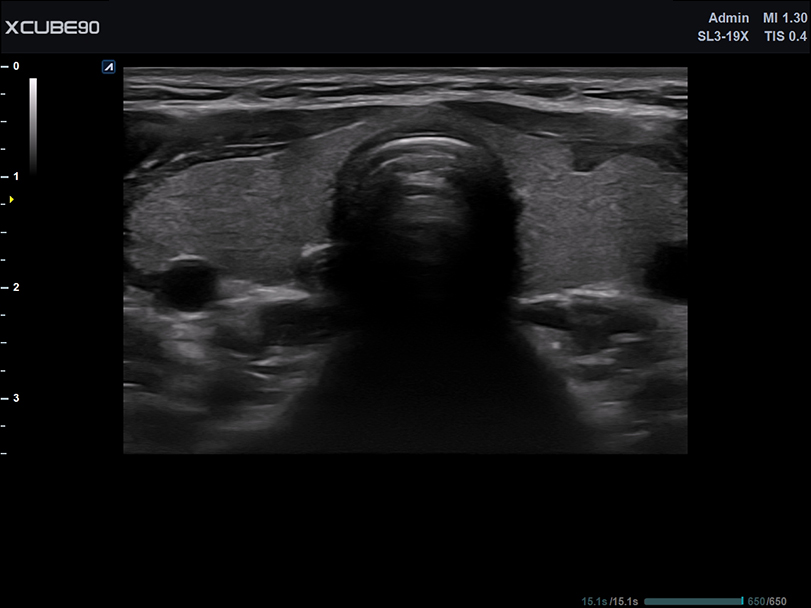

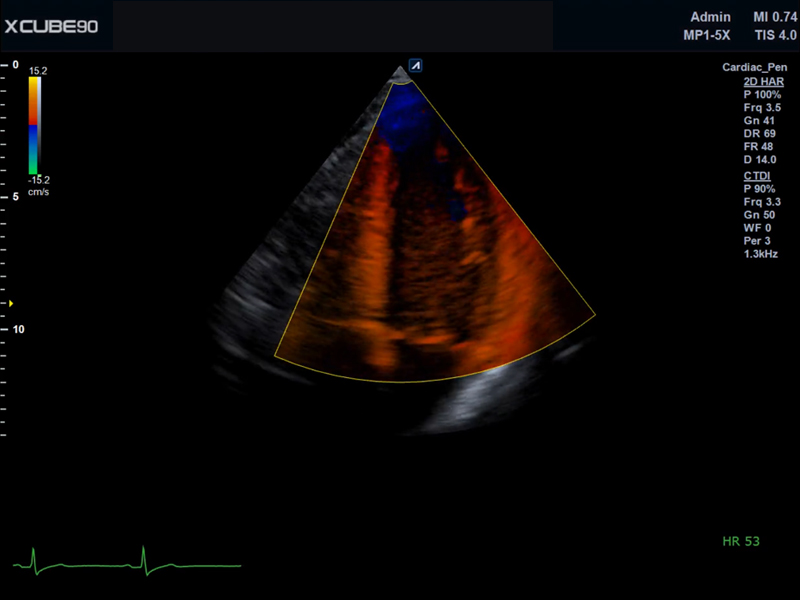

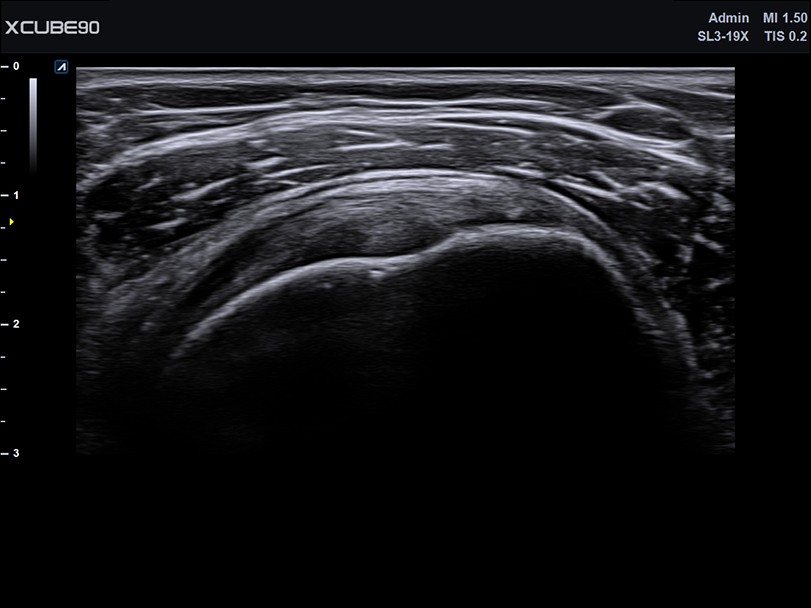

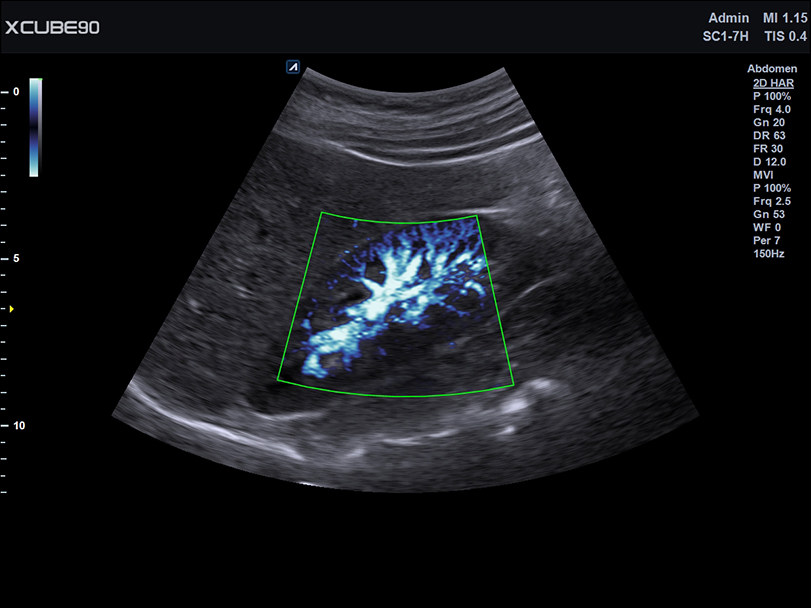

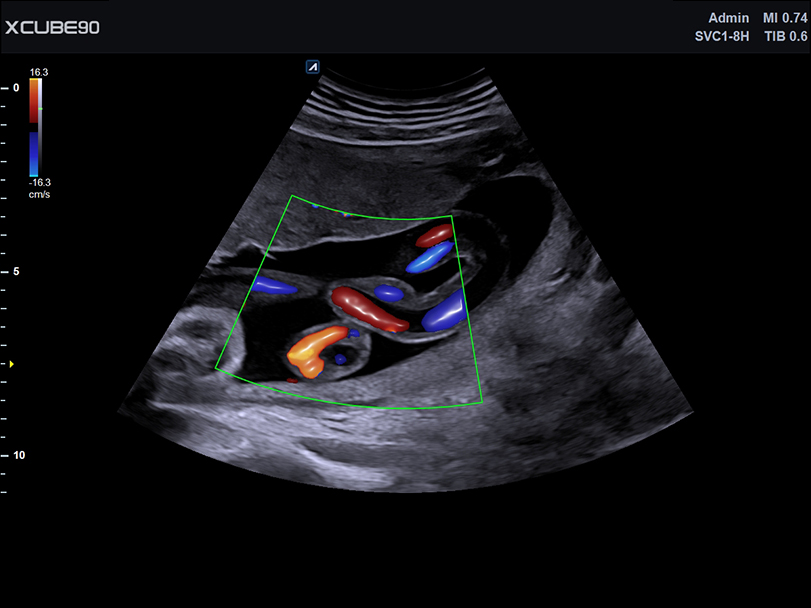

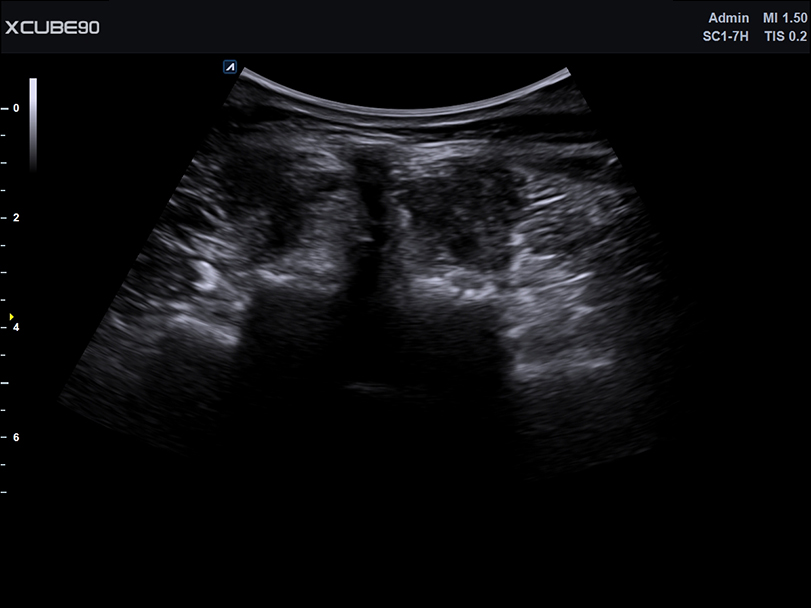

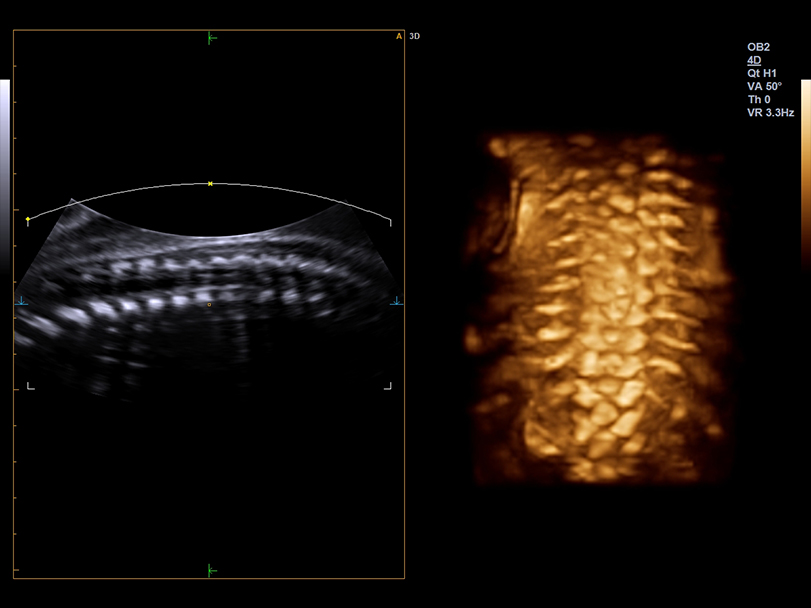

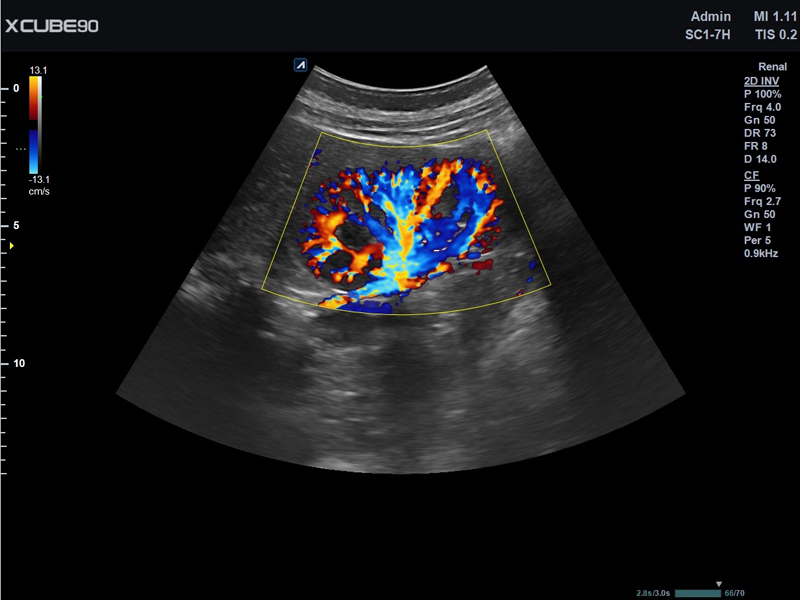

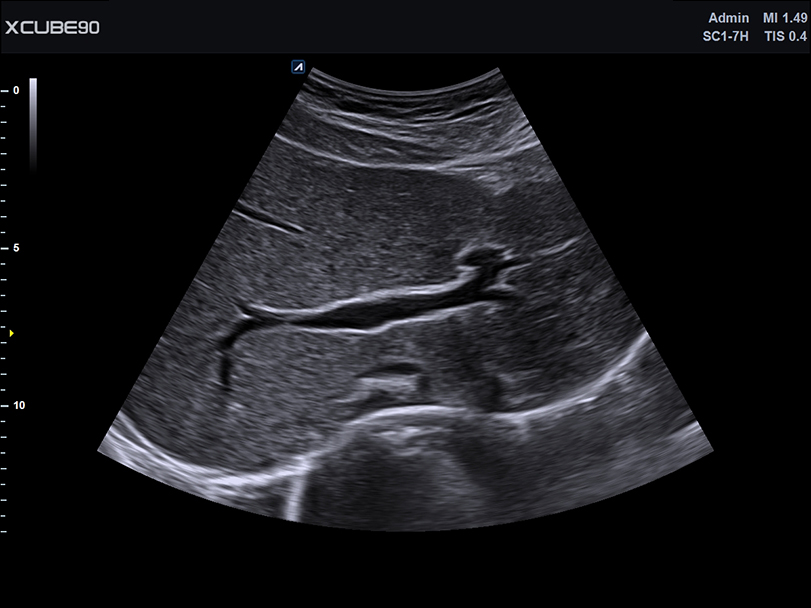

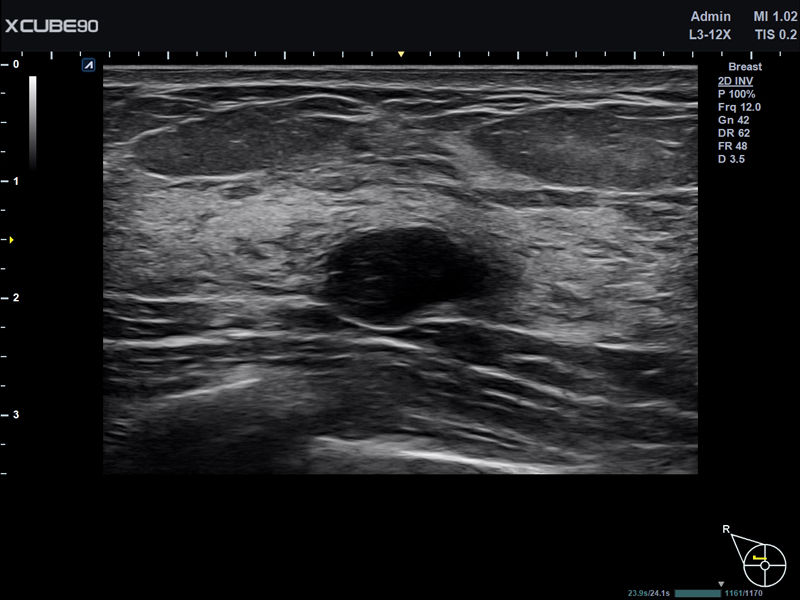

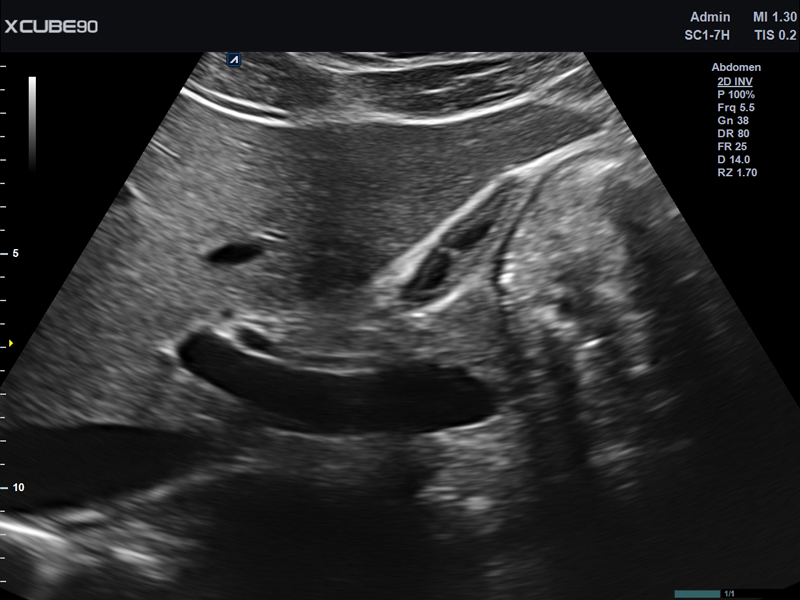

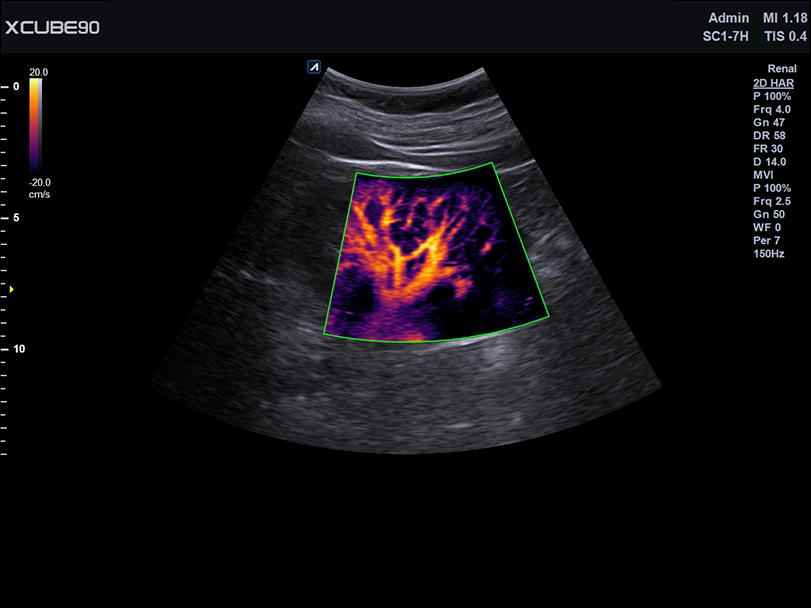

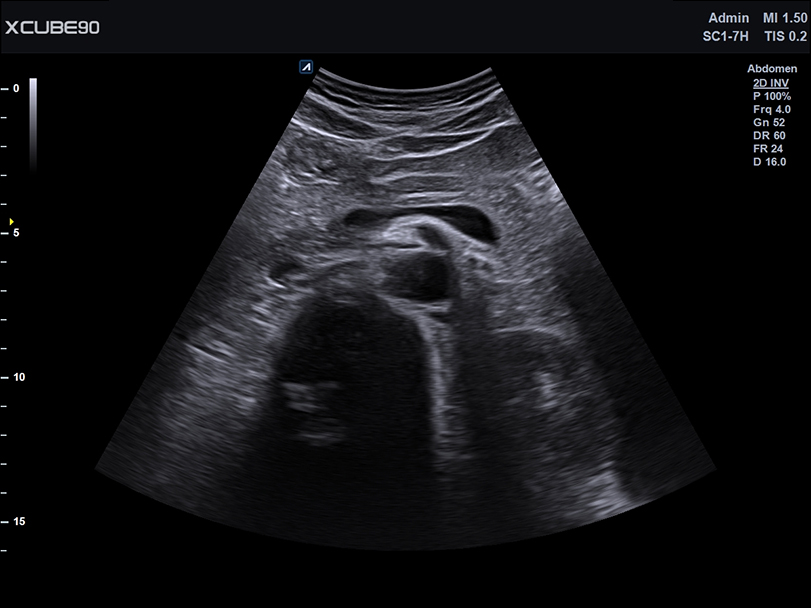

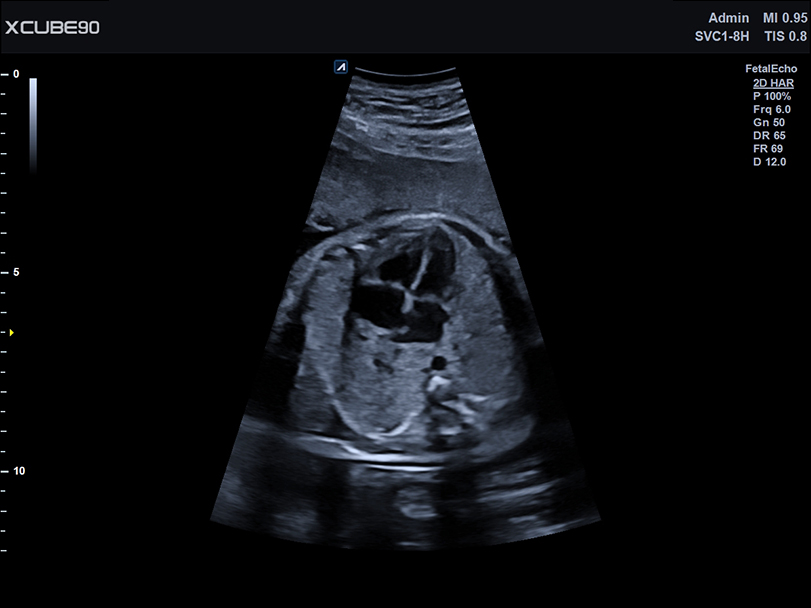

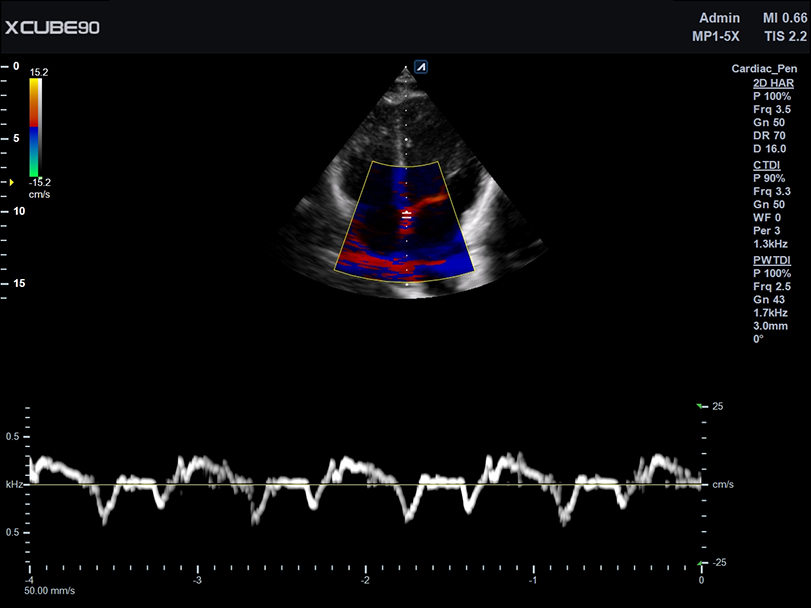

Kidney X+Microview Kidney X+Microview(2) Liver in CF mode Lumbar Spine in 2D mode Pancreas Thyroid Thyroid module in CF mode Shoulder in 2D mode Breast cyst Breast nodule in 2D mode 4 chamber View Uterus in 2D mode 4 chamber view TDI Cardiac TDI in PW mode Fetus face with Depth view Fetal echo Fetal cord brilliant flow Surface fetal spine Kidney in CF mode Gallbladder in 2D mode Hepatic Vein Portal Vein Portal vein X+Microview

X+ Fit Technology

eXceptional Care

Image 1

X+ Assistant

X+ Assistant is customized, complete, exams utilizing scan technologies, image layout, text, and calculations automated for the reduction of keystrokes by approximately 50% per examination. Improves productivity and reduces errors during the exam. A user may create protocols for all of their sonography exams, if desired.

Image 2

X+ Auto Biometry

When measuring Estimated Fetal Weight(EFW), the smart recognition algorithm allows you to automatically identify a structure of interest, and measure fetal head circumference (HC), biparietal diameter(BPD), femur length (FL), abdominal circumference (AC) and Humerus.

Image 3

X+ Compare

This is a feature that allows users to import a patient’s previous study from a PACS server or hard disk and compare when scanning or reviewing. By comparing previous images of the same region, users may easily observe the patient’s progress; thereby making this feature useful when providing patient care. X+ Compare may be beneficial for reviewing images in E-View, as well.
* X+ Compare supports ultrasound images only.

Image 4

USB Real-time Recording

USB real-time recording makes data storage easier by allowing users to record ultrasound scan images on USB memory in real time. Videos are recorded as high-definition and stored in system quickly.

Image 5

Antivirus Solution

Antivirus scanning is initiated whenever system power ups, thereby securely protecting patient information.

eXpanded Capabilities

Auto IMT image

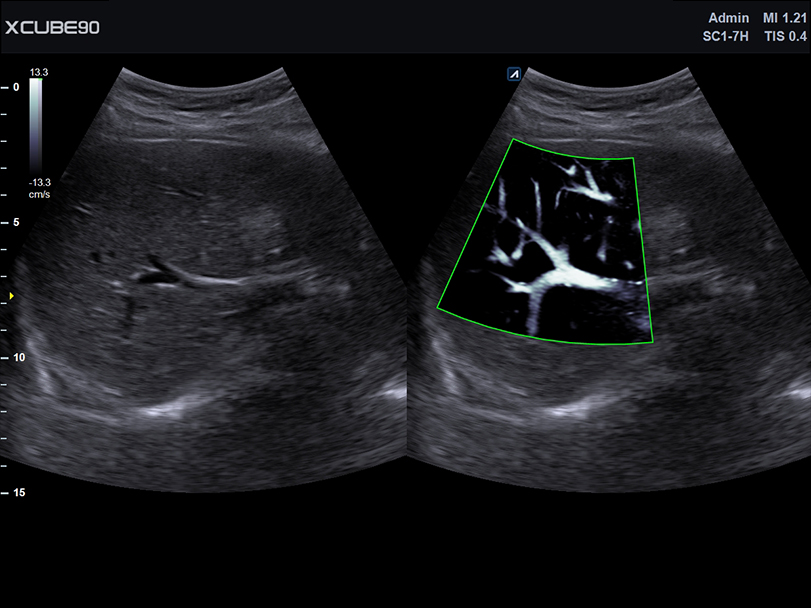

X+ MicroView

  • X+ MicroView™ is an advanced ultrasound technology using color flow filters. It visualizes extremely slow and tiny blood flow within microvessels. These flows are usually undetectable with traditional Doppler imaging. The tool enhances visibility of organ perfusion in real-time. It also reveals subtle pathological flow patterns efficiently. This feature greatly assists in early diagnosis and treatment planning.
CUBE Strain image

Shear Wave Elastography (SWE)

  • Shear Wave Elastography is a cutting-edge, non-invasive diagnostic tool. It measures tissue stiffness by analyzing shear wave speed. SWE is highly effective in assessing chronic liver disease conditions. It also evaluates suspicious nodules in the thyroid and breast. The tool delivers accurate and reproducible quantitative results. This enhances clinical confidence and supports early decision-making.
Live HQ image

X+ pSWE

  • Point Shear Wave Elastography shows objective quantified stiffness of tissue using the radiation force from a focused ultrasound beam. Users may identify significant liver fibrosis non-invasively to reduce unnecessary biopsies and increase patient satisfaction. X+ pSWE ensures the highest reliability of measured results by displaying the Reliability Index.
Live HQ image

Mixed Mode

  • Allows users to create a variety of 3D object results by blending 2 effects from 7 types of rendering.
  • Customizes the depth, light expression, and sharpness of the structure to achieve the look you desire.
Live HQ image

Clear Face

  • Clear Face is an intelligent feature for fetal imaging in ultrasounds. It detects the fetus’s face automatically during scanning. The tool removes obstructive elements like cord, placenta, and uterus. This results in a clean, unobstructed view of the baby’s face. Its simple, automated operation makes it user-friendly and efficient. Clinicians and parents benefit from clearer, more detailed fetal images.

Design & Ergonomics

Ultrasound machine

23.8 inch FHD LED Screen

  • Enjoy a larger widescreen and clear, high definition images.

12.1 inch tilting LCD color touch panel

  • We've combined angle adjustment functionality with its larger,
    full-color touch panel to maximize user convenience

320° Articulating Monitor Arm& ±90°, 60° Angle
Adjustable Gel Warmer

  • Ergonomic design helps to promote healthy posture, which reduces musculoskeletal pain.

Motorized Control Panel

  • The control panel may be easily adjusted vertically as it is motorized.

5 Transducer connectors

  • You may use a variety of transducers as required with no need to replace them, and thus saving time during conducting diagnosis

Transducers

Convex Probe 1

SC1-7H

X+ Crystal Signature™ convex transducer(1~7MHz)

Application:

Abdomen, EM, Gynecology, Obstetrics, Pediatric, Urology

Convex Probe 1

SC2-9H

X+ Crystal Signature™ convex transducer(2~9MHz)

Application:

Abdomen, EM, Gynecology, Obstetrics, Pediatric, Urology

Convex Probe 1

C1-6CT

X+ Crystal Signature™ Microconvex(2~11MHz)

Application:

Abdomen, Pediatric, OB/GYN, Urology, EM

Linear Probe 1

IO7-18

High frequency hockey stick (7-18MHz)

Application:

Small Parts, MSK

Linear Probe 1

L10-25H

Wideband Ultra High Freq. Linear (10~25 MHz)

Application:

Vascular, MSK, Small Parts, EM

Linear Probe 1

SL3-19H

X+ Crystal Signature™ linear transducer(3~19MHz)

Application:

MSK, Vascular, Small Parts, Breast, TCD, Abdomen, Pediatric, Gynecology, Obstetrics, EM

Linear Probe 1

L3-12X

Extreme-high density linear transducer (3-12MHz)

Application:

Breast, EM, MSK, Vascular, Small Parts

Linear Probe 1

L3-15H

High density linear transducers (3-15 MHz)

Application:

MSK, Vascular, Small Parts, Breast, EM

Phased Array Probe

MP1-5X(NEW)

X+ Crystal Signature™ phased array (1~5MHz)

Application:

Cardiac, TCD, EM, Abdomen, Pediatric

Endocavity Probe

EV2-11H

X+ Crystal Signature endocavity transducer(2~11MHz)

Application:

Gynecology, Obstetrics, Urology, EM

Endocavity Probe

EC2-11H

X+ Crystal Signature endocavity transducer(2~11 MHz)

Application:

Gynecology, Obstetrics, Urology, EM

Volume Probe

SVC1-8H

Single Crystal Volume Convex

Application:

Gynecology, Obstetrics, Abdomen, Pediatric, Urology, EM

Volume Probe

VE3-10H(NEW)

Volume Endocavity

Application:

Gynecology, Obstetrics, Urology, EM

Specialty Probe

CW5.0

Pencil type transducer (5.0MHz)

Application:

Cardiac

Specialty Probe

CW2.0

Pencil type transducer (2.0MHz)

Application:

Cardiac

Specialty Probe

CW8.0

Pencil type transducer (8.0MHz)

Application:

Cardiac
