Experience a versatile ultrasound solution for the modern healthcare environment.
The X-CUBE i9 offers optimum mobility, intuitive workflow, intelligent clinical applications, and efficient diagnostic solutions.
Innovative healthcare professionals can achieve new heights in patient satisfaction with best-in-class imaging clarity and accuracy to confidently support each critical diagnosis with maximum viewing and data interpretations.

Download Catalog
Device Ports

X-CUBE i9 frees you from time and space constraints

and helps you focus more on your patients. Long-lasting batteries and dual
transducers provide flexibility in the examination

⚡

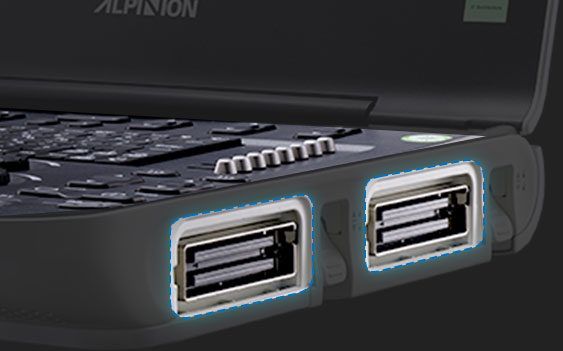

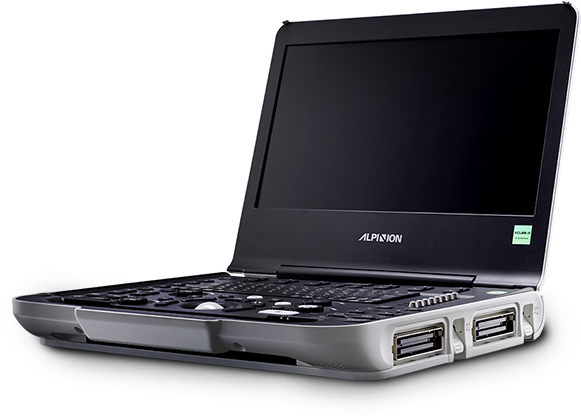

Dual Transducers
2 active transducer connectors
(Second connector optional)

Double Up Your Efficiency

With dual batteries and transducers

Medical Device

Dual Batteries

2 built-in batteries
(Second battery optional)

Long-lasting dual batteries

Standby mode: Max 100 hrs.
Continuous scan: Max 60 min.

Medical Device

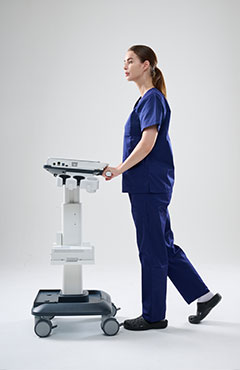

Easy Control Cart

Easy adjustment of height: 848 ~ 998mm.
Smooth and silent gas lift cylinder

Excellent Imaging Quality For Versatile Diagnostic Performance

Powered by X⁺ Architecture, innovative imaging algorithms

and efficient diagnosis workflow to effectively support the diverse range of clinical settings with crystal clear imaging quality.

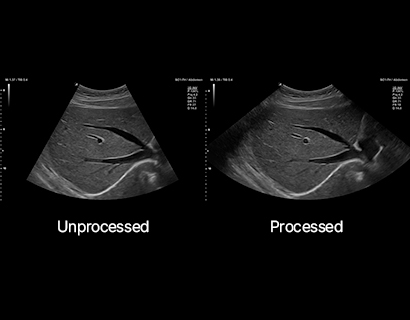

The ultrasound acquisition process enhanced by the signal obtained with the X⁺ Crystal Signature, a highly sensitive broadband transducer and the high-resolution images generated by the X⁺ FIT technology, a large-capacity dataprocessing, provide a high-resolution image.

Slide 1

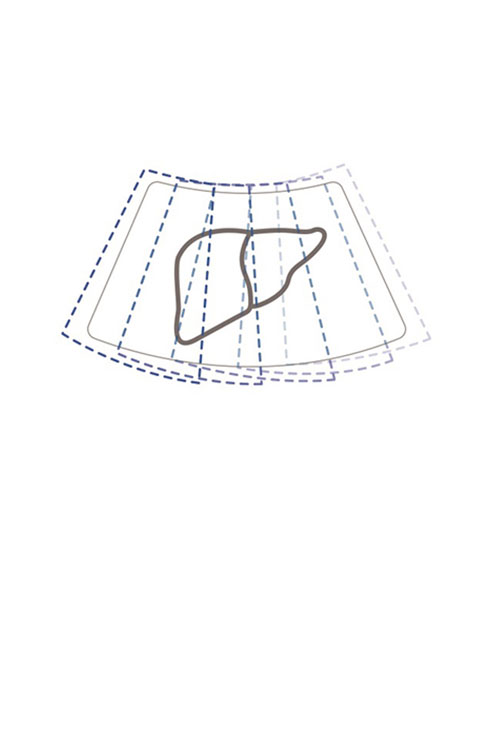

X⁺ FIT

The sophisticated parallel beamforming technology X⁺ FIT improves contrast and uniformity for excellent resolution by transmitting, receiving and processing a large amount of data.

Slide 2

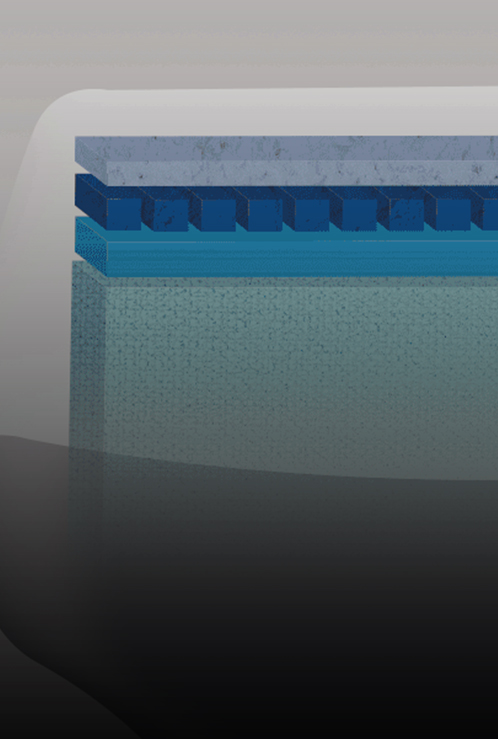

X⁺ Crystal

Advanced crystal technology delivering precise and sharp ultrasound imaging with broader sensitivity range.

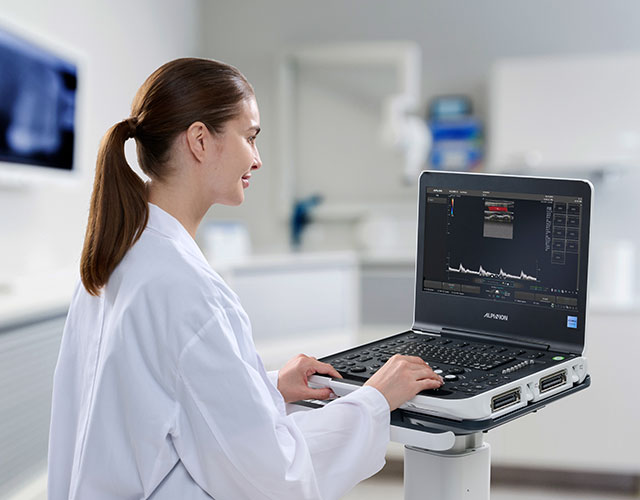

Expand Flexibility And Adaptability

X-CUBE i9 frees you from time and space constraints and helps you focus more on your patients. Long-lasting batteries and dual transducers provide flexibility in the examination and

the intelligent options help the fast examination and the guide function, which reduces the dependency on operators and maximizes efficiency.

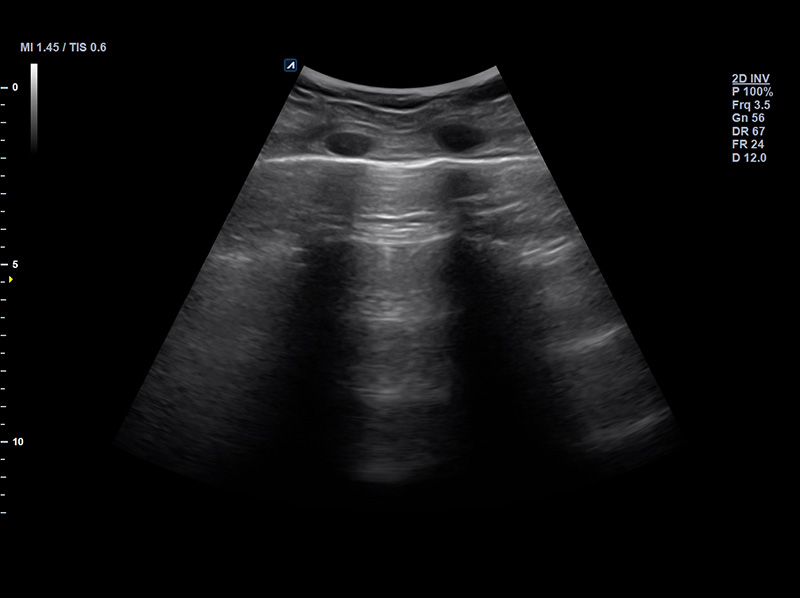

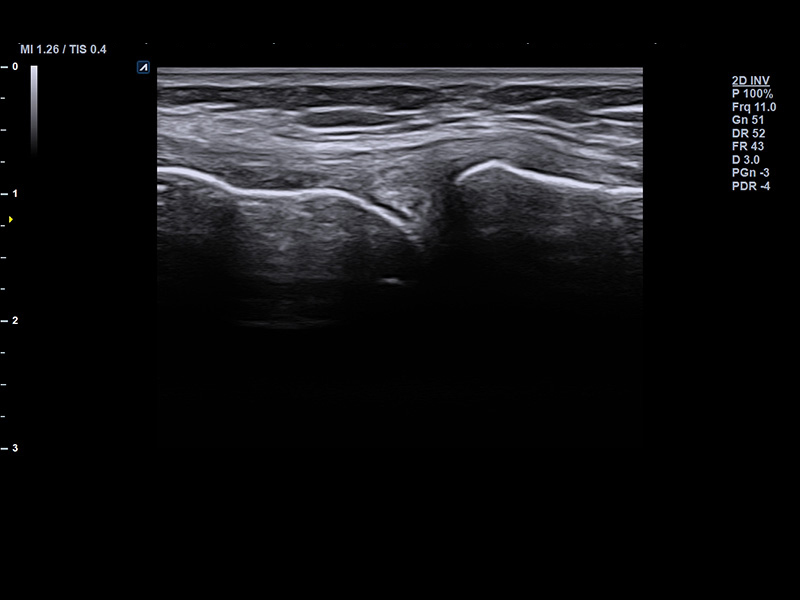

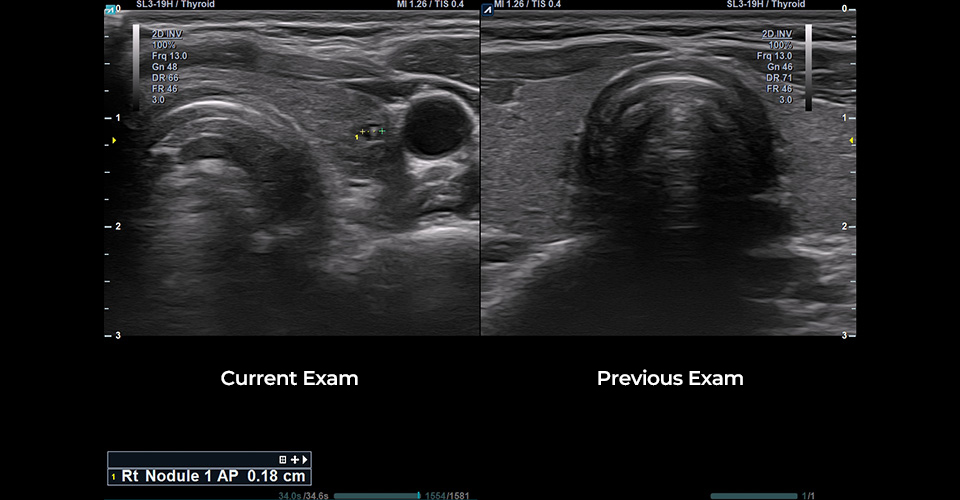

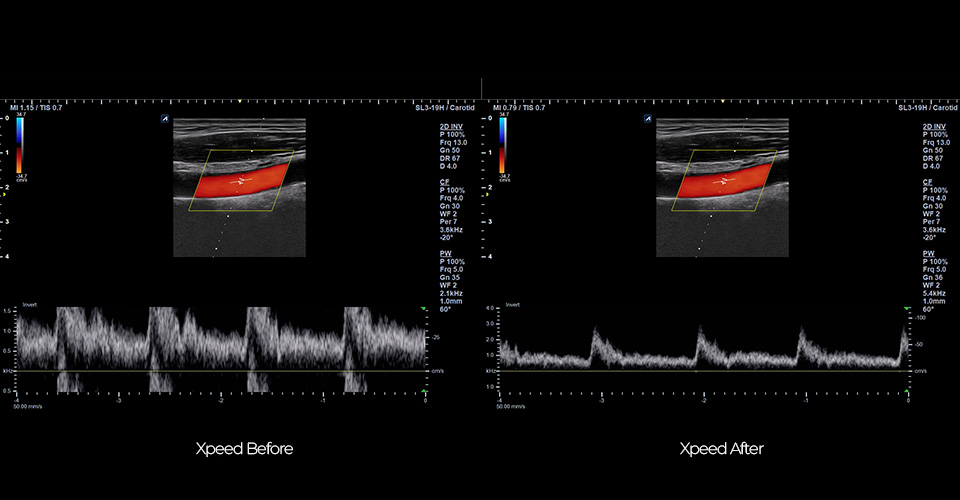

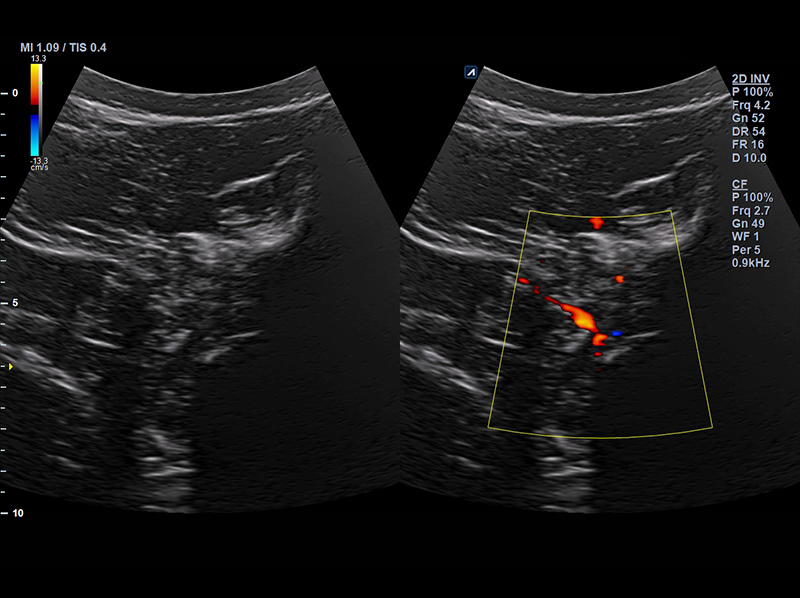

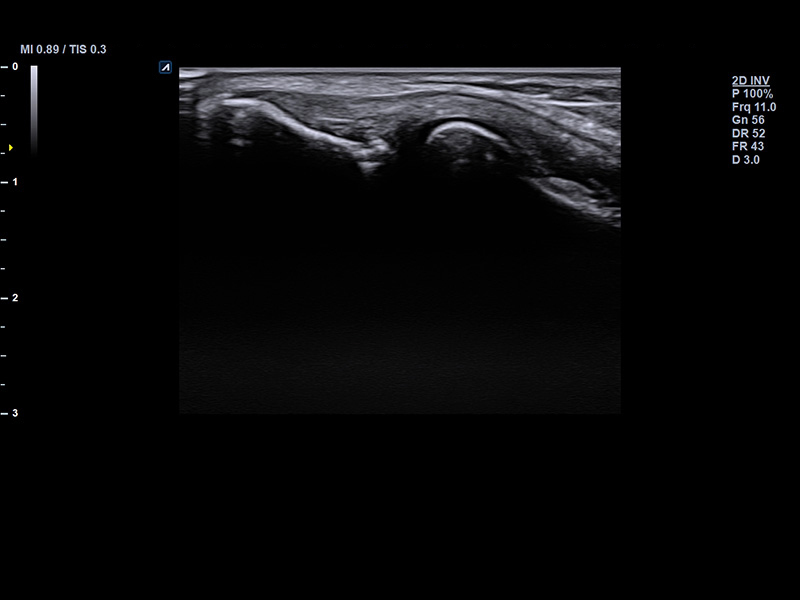

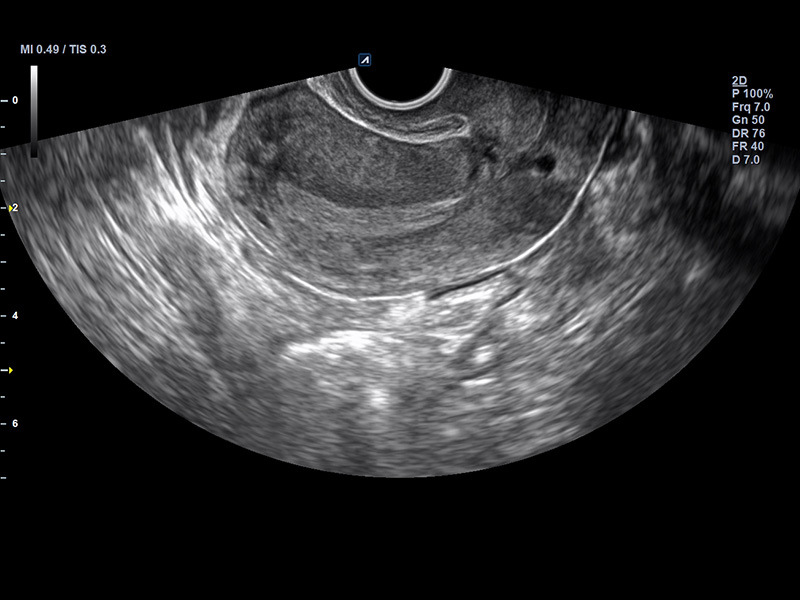

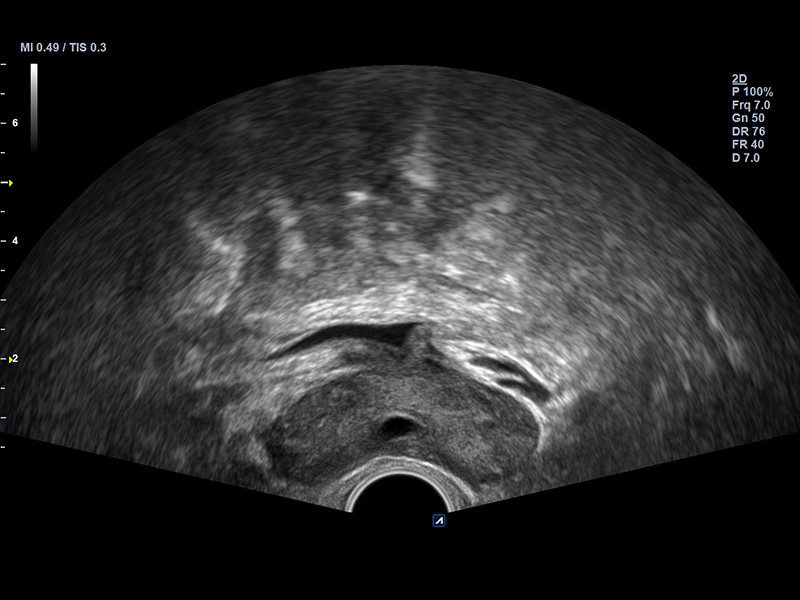

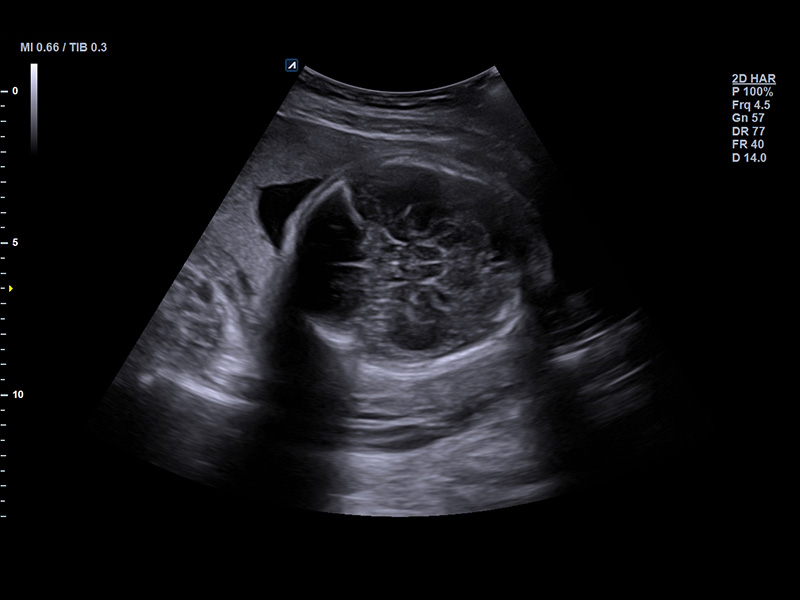

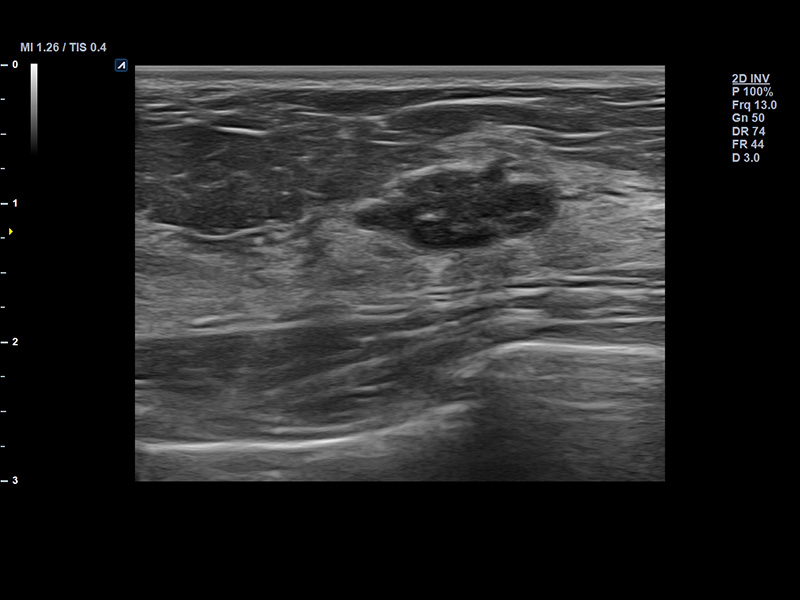

Imaging Example
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1

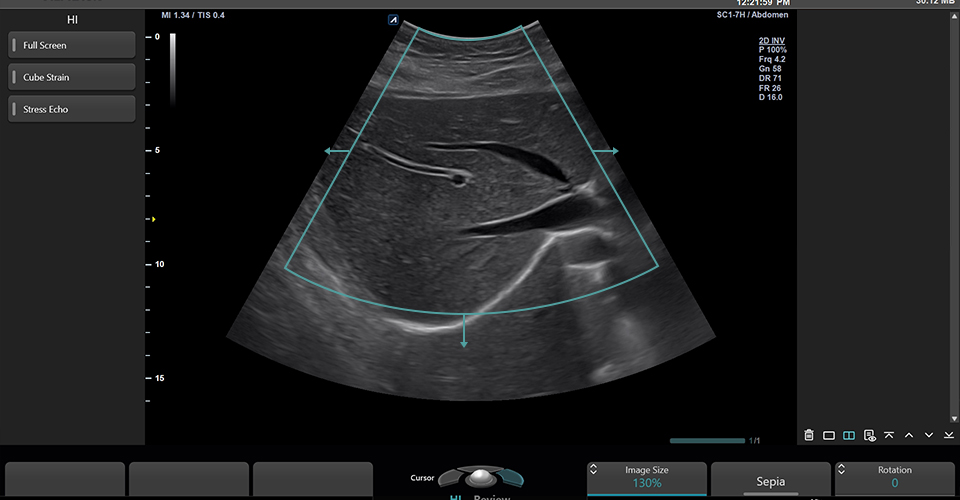

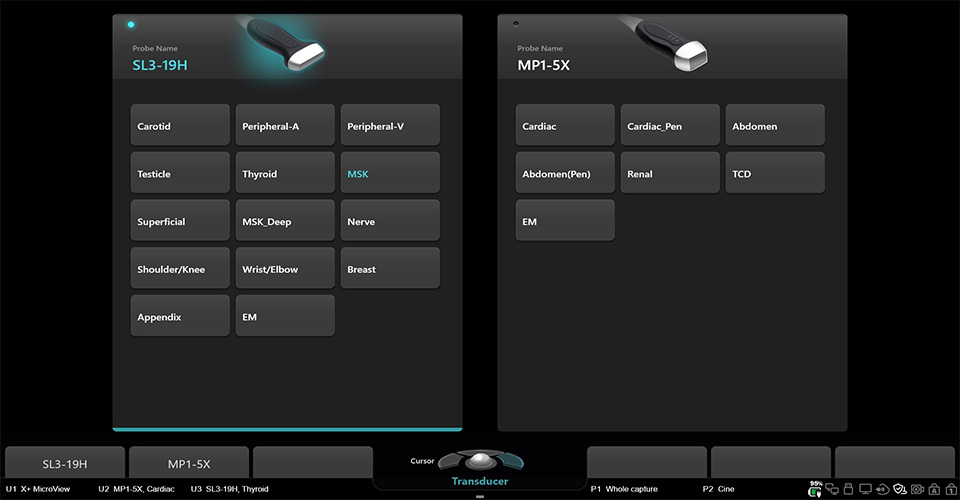

Power Preset

Users can load a system preset saved in advance with a single button click. By using these quick and easy presets, users can shorten the imaging set up time.

Activate Versatility with
Quality and Performance

Step 1 Step 2 Step 3 Step 4 Step 5
Ultrasound Demo

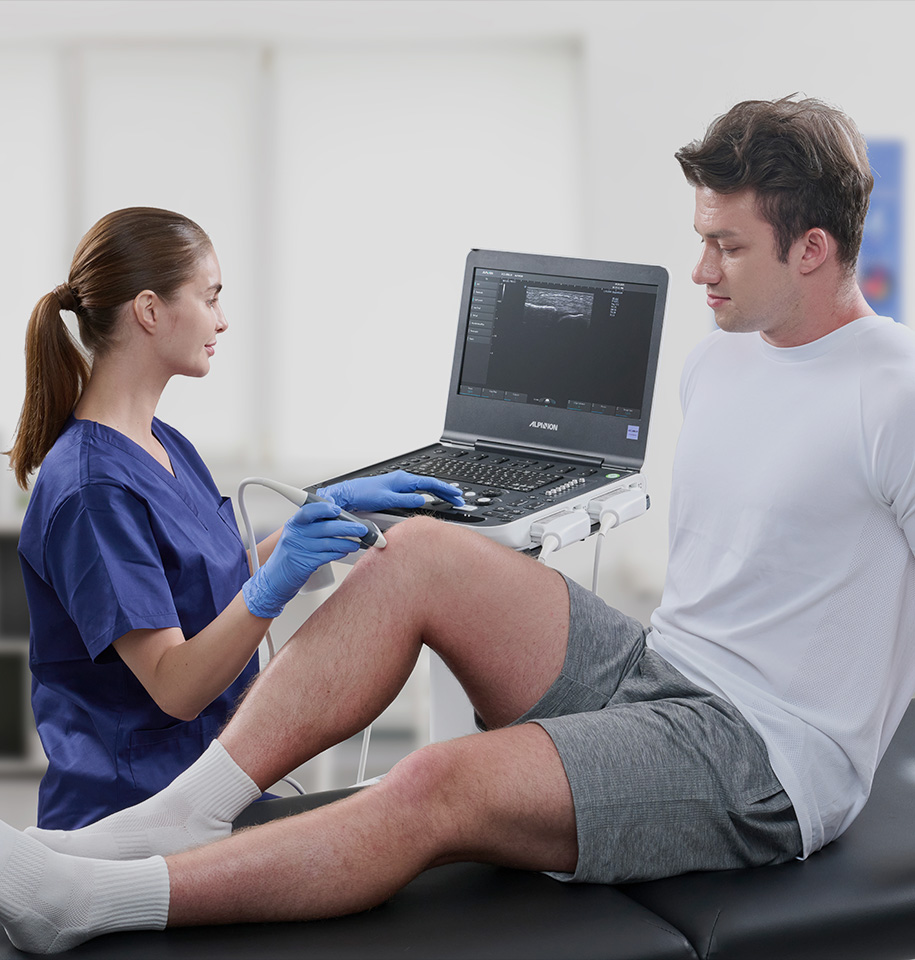

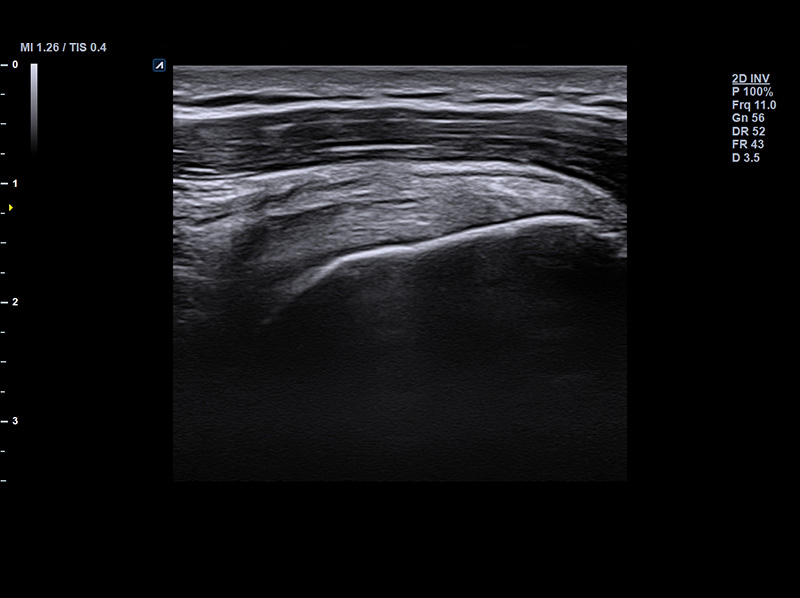

Musculoskeletal

Feature 1

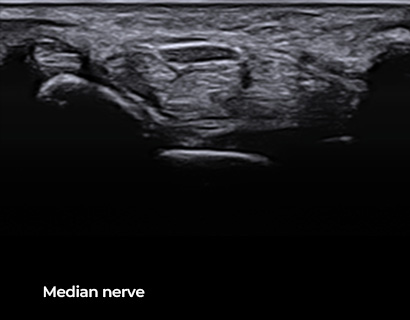

High quality image

Ultra-high frequency linear L10-25H and wide bandwidth SL3-19H transducer, allow rich image quality from surface to muscle, nerve and deeper area.

Feature 2

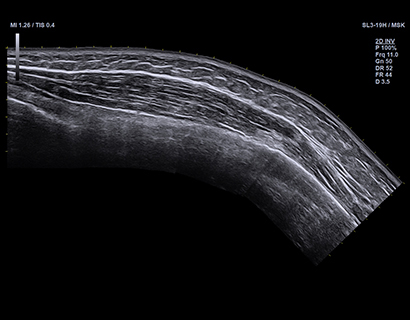

Panoramic Imaging

Panoramic Imaging offers a horizontal image with an extremely extended field of view.

Ultrasound Demo

Vascular

Feature 1

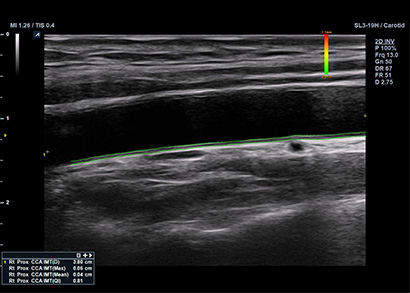

Auto IMT

When the user draws a line in the area where the carotid intima media thickness is to be measured, the thickness will be measured automatically and displayed on the screen.

Feature 2

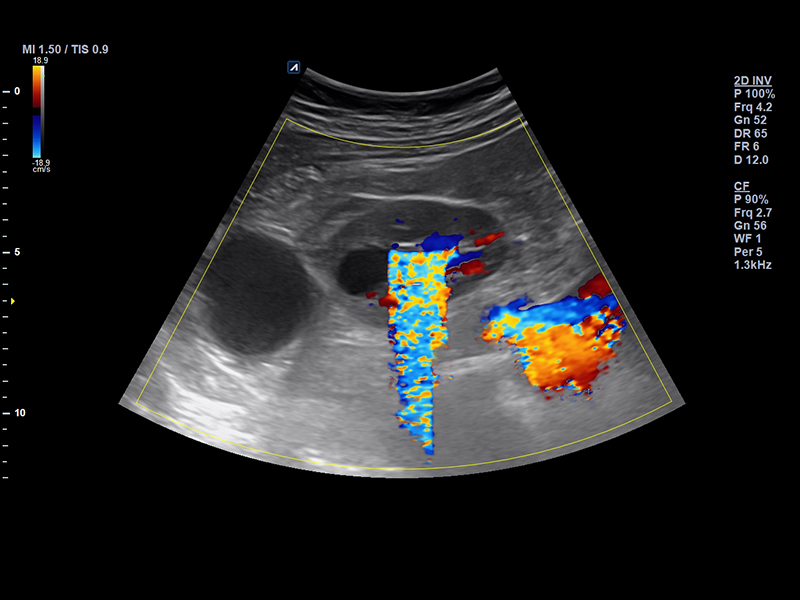

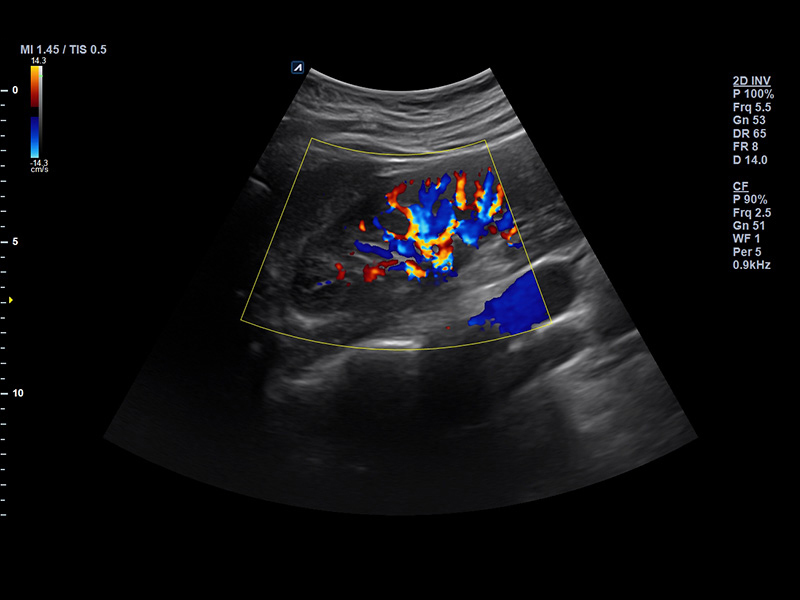

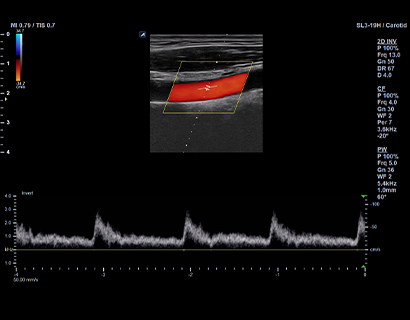

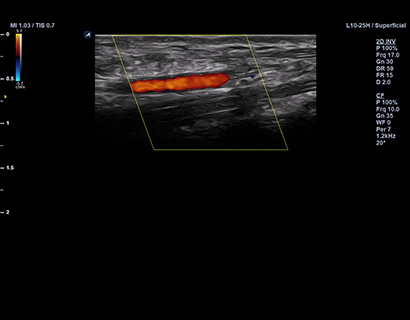

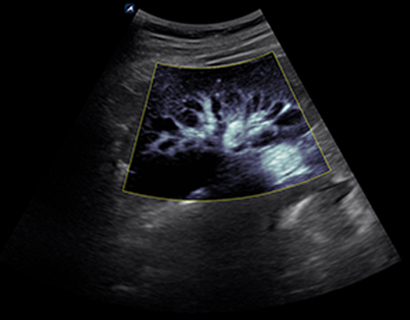

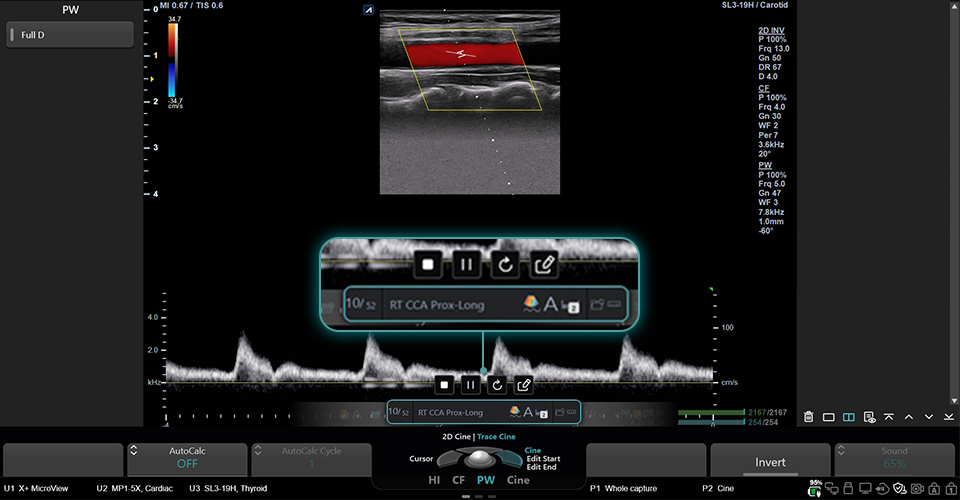

Doppler image

The direction and velocity of blood flow are displayed in real time. The excellent frame rate and image quality of the X-CUBE 19 help accurate and prompt exam.

Ultrasound Demo

Primary Care - Cardiology

Feature 1

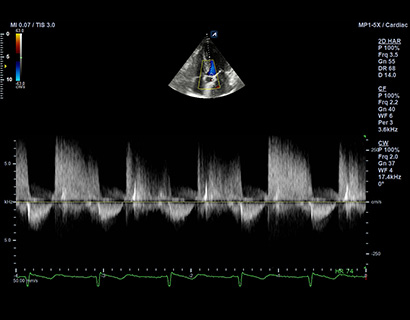

CW Doppler

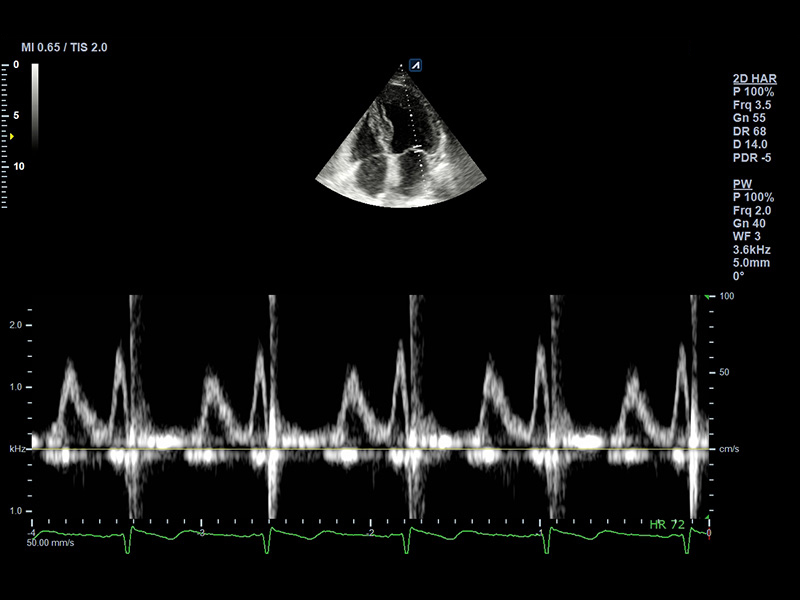

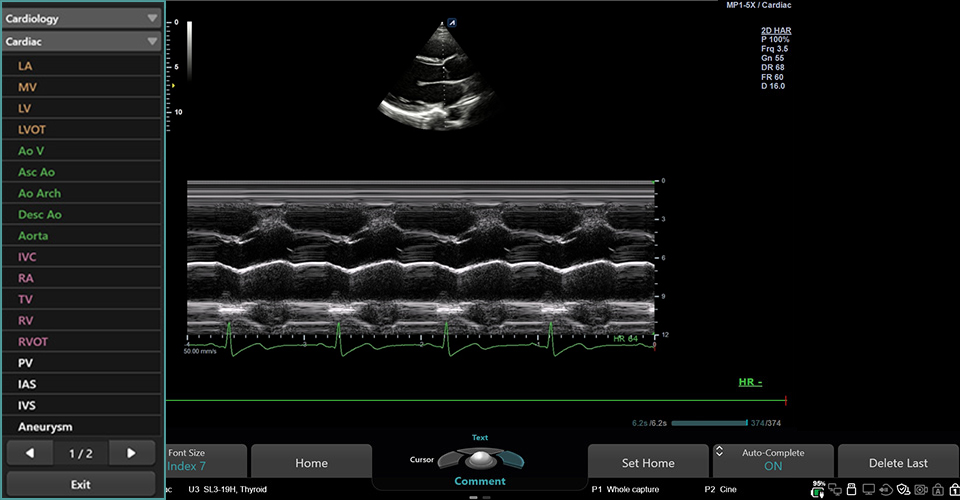

Continuous Wave Doppler (CWD) mode allows you to view the velocity and direction of a blood flow at a certain position. As you move the Doppler cursor, images on the Doppler line appear by time order.

Feature 2

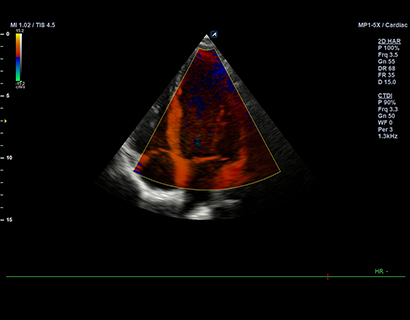

Tissue Doppler Imaging

Tissue Doppler Imaging (TDI) mode allows you to view the status of the myocardium by measuring the velocity of the tissue movement on the Doppler image.

Ultrasound Demo

Primary care – Abdomen, Obstetrics

Feature 1

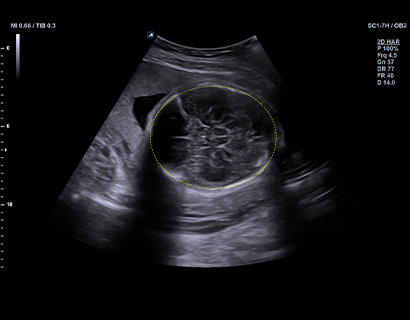

X+ Auto Biometry

When measuring Estimated Fetal Weight(EFW), the smart recognition algorithm allows you to automatically identify a structure of interest and measure HC, BPD, FL, AC and Humerus.

Feature 2

Wide FOV

FOV of up to 100 degrees are supports to see more of abdomen organs or bigger organ as well as fetus.

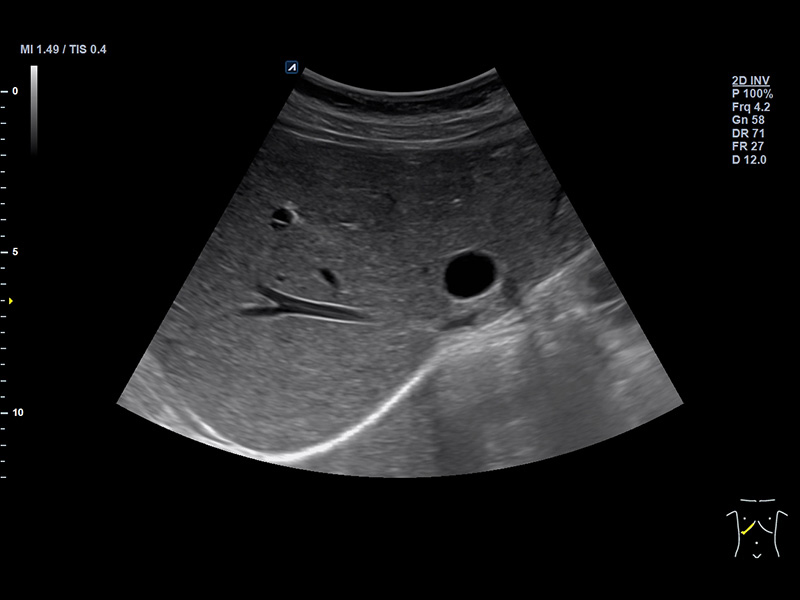

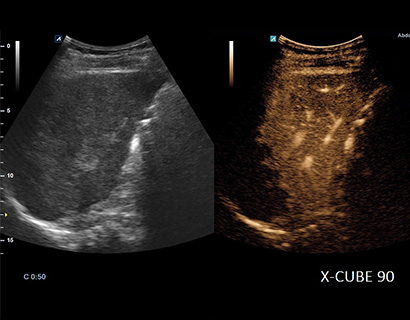

Clinical Image

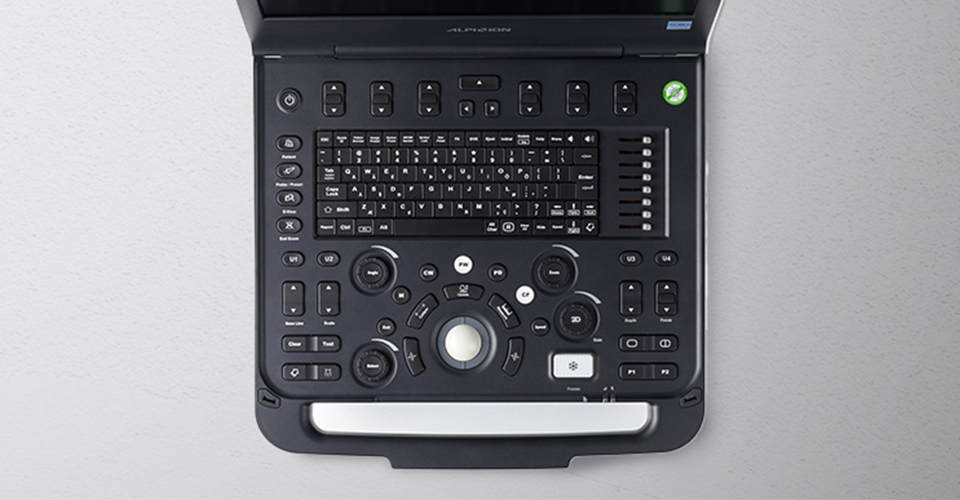

Design & Ergonomics

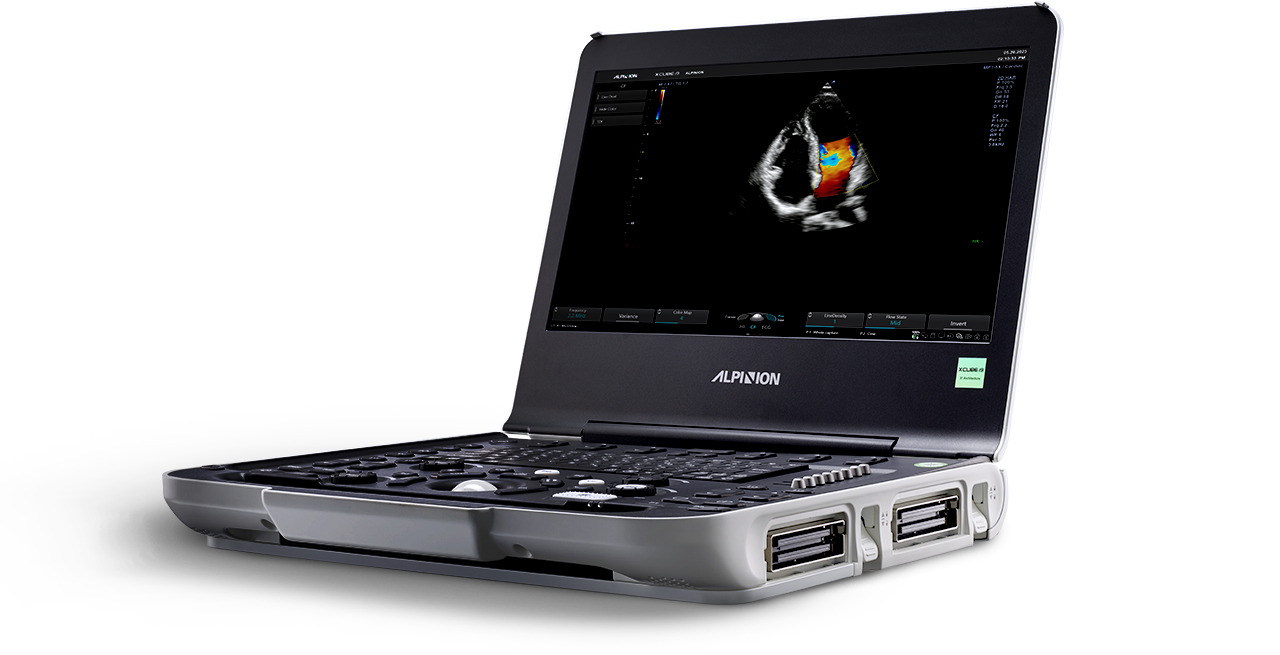

Ultrasound machine

Product Specification

  • 2 Transducer connectors (Second connector optional)
  • 2 Built-in Batteries (Second battery optional)
    Sleep mode: Max. 100 hrs.
    Continuous scan: Max. 60 min.
  • Fast System Boot-up
    From sleep mode: 15 sec. / From off mode: 62 sec.
  • 15.6 inch LCD monitor
  • Monitor tilting up to 180°
  • 6Kg (with 1 battery)
  • Dimension: 385(W) x 370(D) x 62.5~353(H) mm
  • 4 User Define Key
  • Control Panel Cover (Optional)

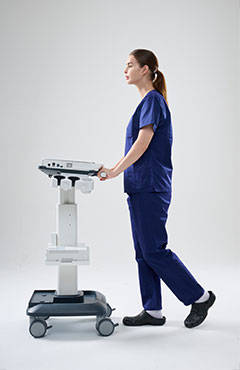

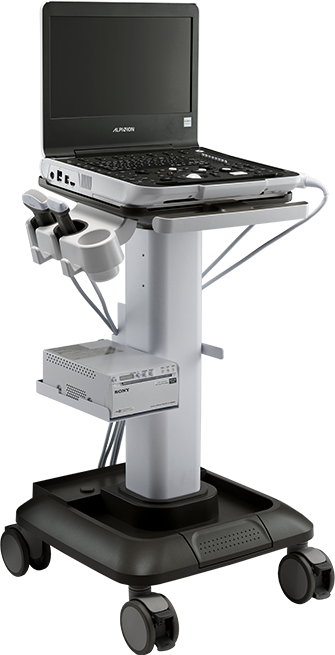

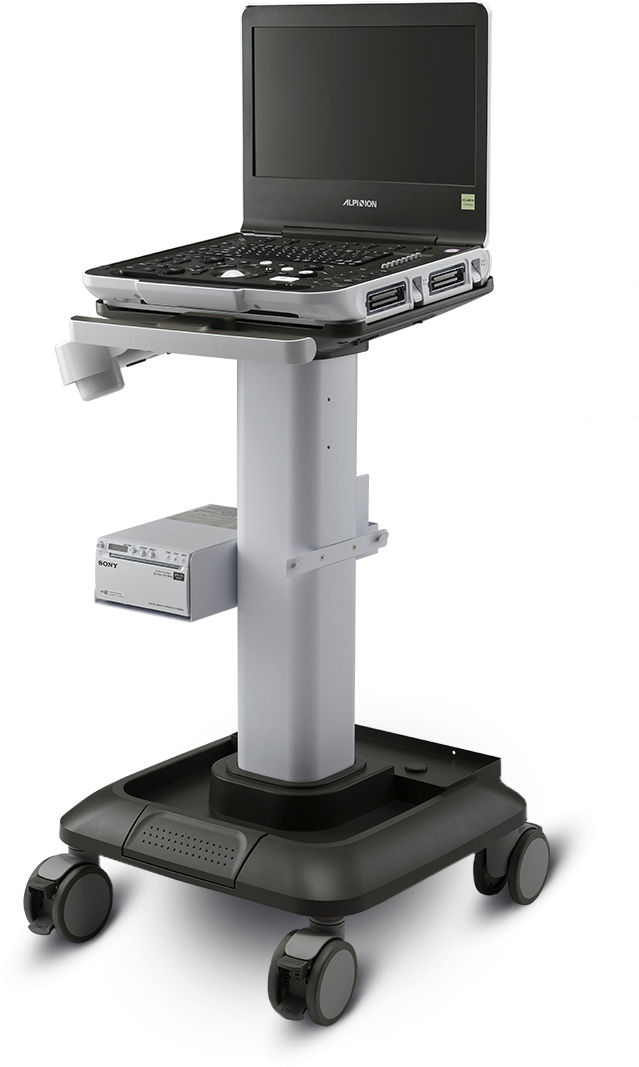

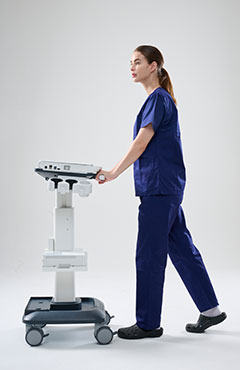

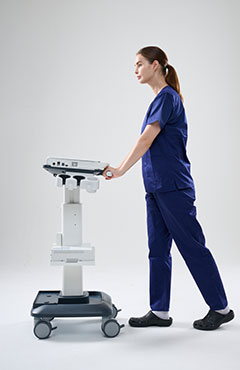

Easy Control Cart

  • Smooth and silent gas lift cylinder
  • Easy adjustment of height: 848 ~ 998 mm
  • 2 transducer holders, 1 Gel holder
  • Weight: 22.5 kg
  • Safety product locks
  • Transducer cable management
  • 4 swivel wheel
  • Safety break locks

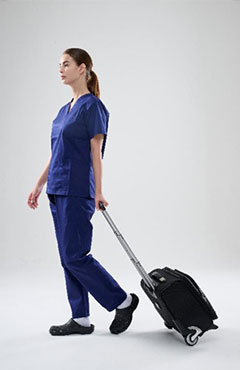

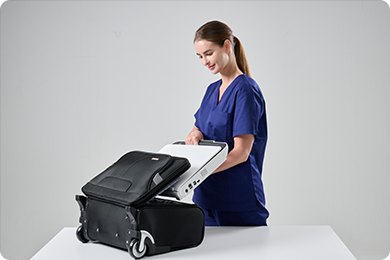

Carrying Bag

  • 3 transducer pouches included.
    * The cart and carrying bag may be available for purchase separately.

Transducers

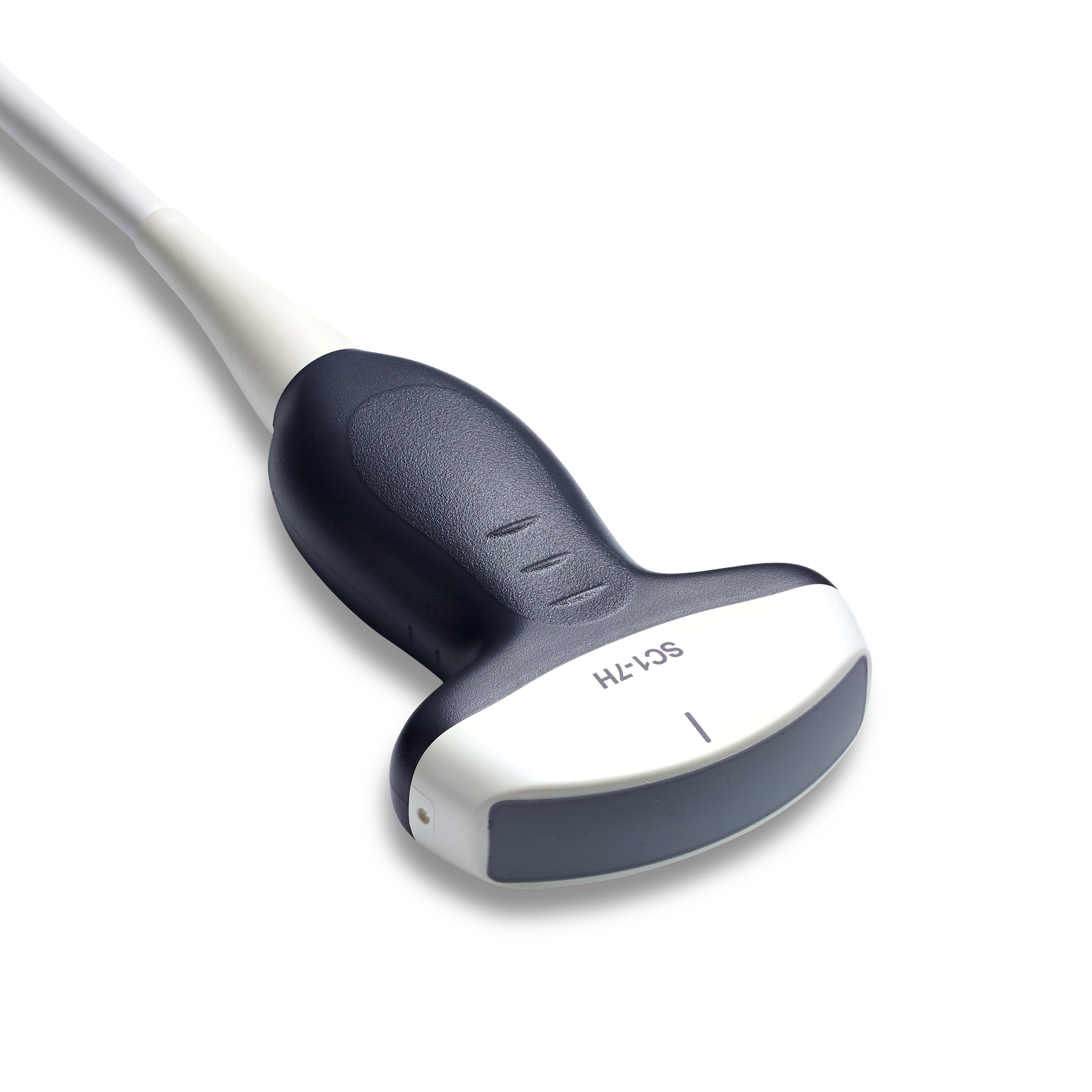

Convex Probe 1

SC1-7H

X+ Crystal Signature™ convex transducer(1~7MHz)

Application:

Abdomen, EM, Gynecology, Obstetrics, Pediatric, Urology

Convex Probe 1

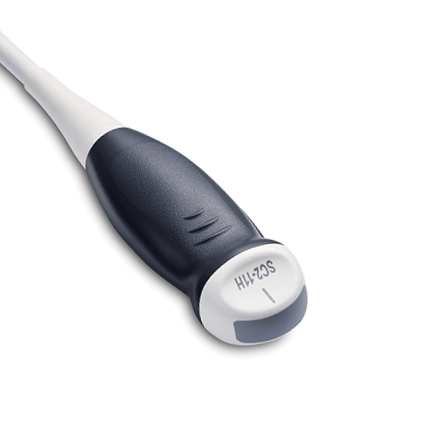

SC2-11H

X+ Crystal Signature™ Microconvex(2~11MHz)

Application:

Abdomen, Pediatric, OB/GYN, Urology, EM

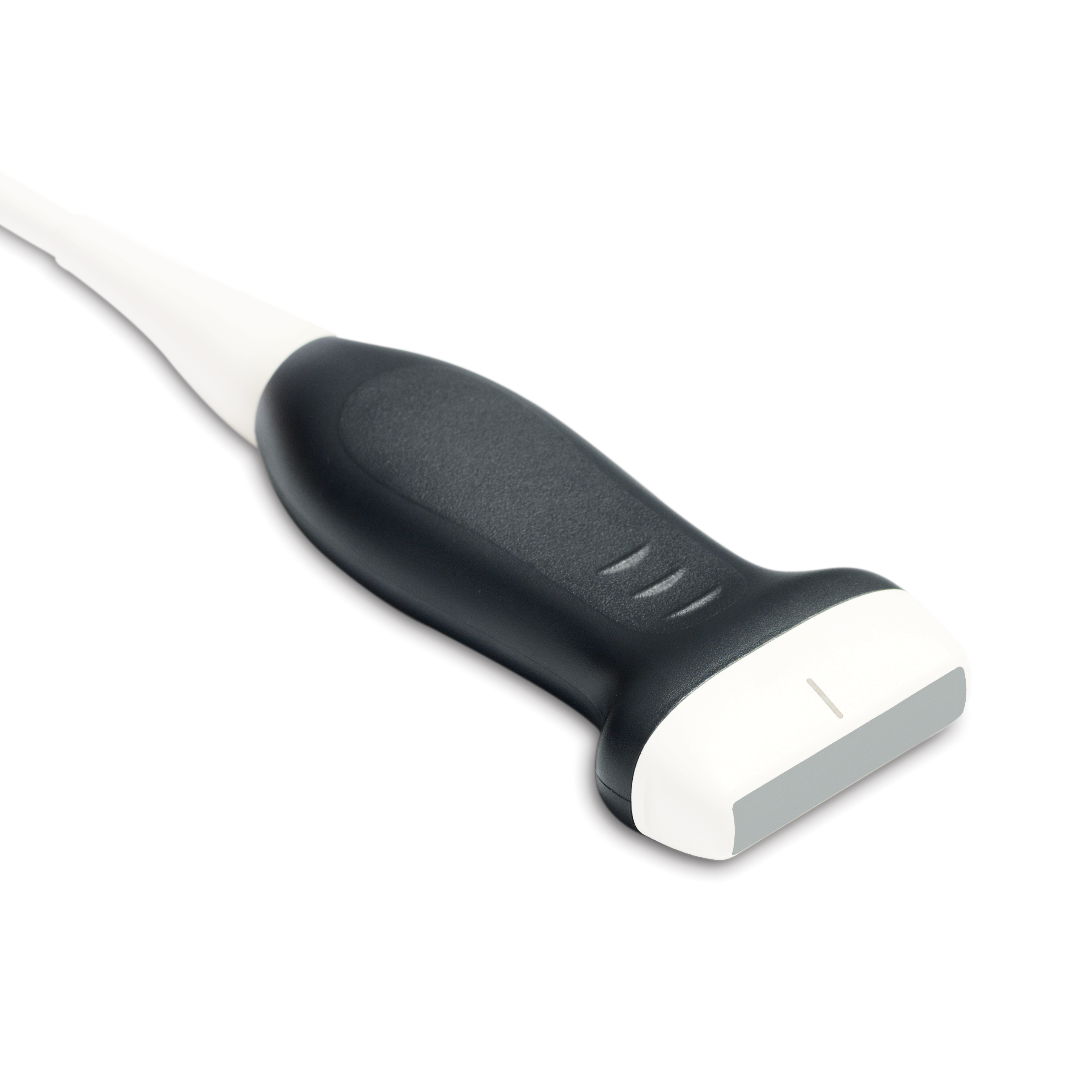

Linear Probe 1

L3-8H

High density low frequency linear transducer (3-8MHz)

Application:

Breast, EM, MSK, Vascular, Small Parts

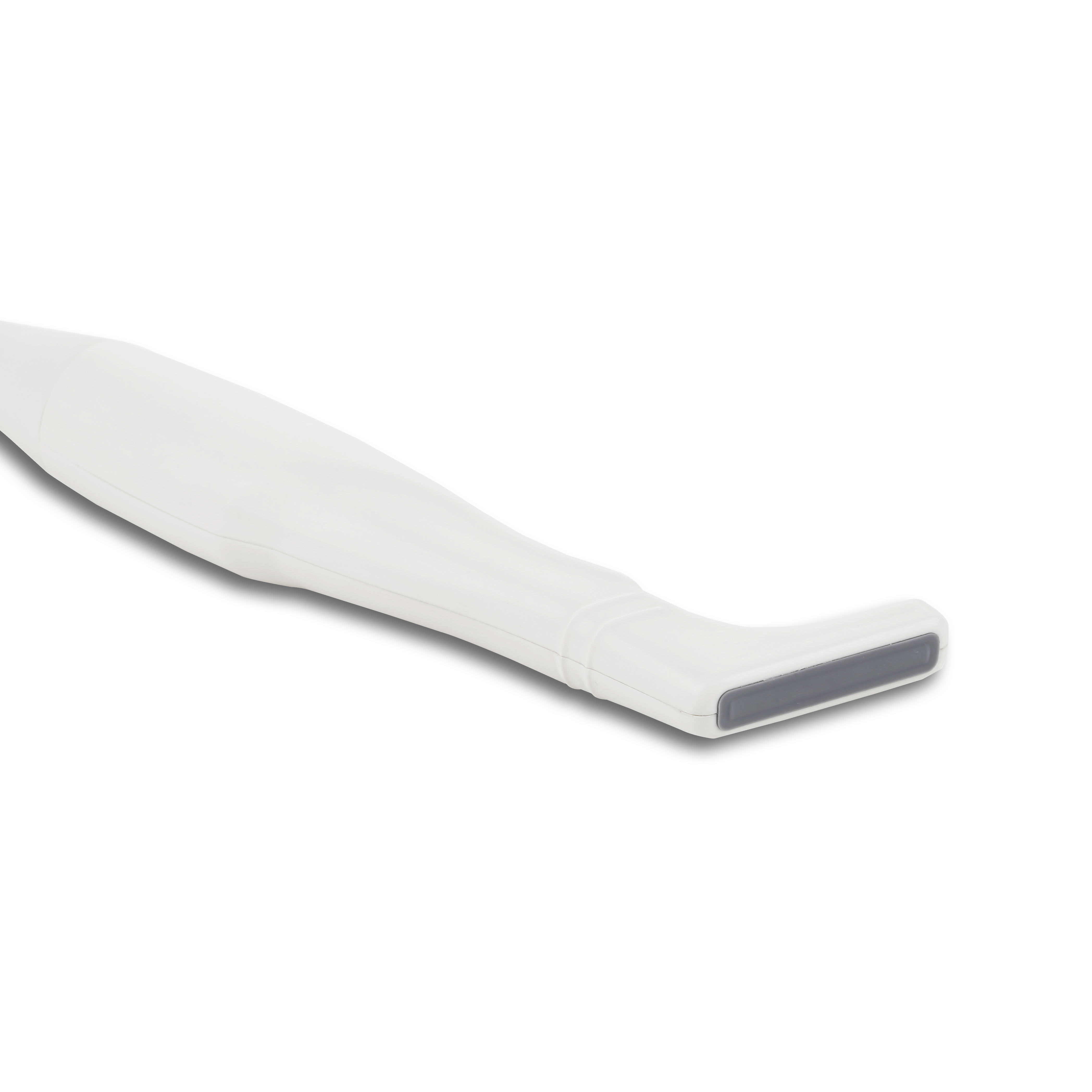

Linear Probe 1

IO7-18

High frequency hockey stick (7-18MHz)

Application:

Small Parts, MSK

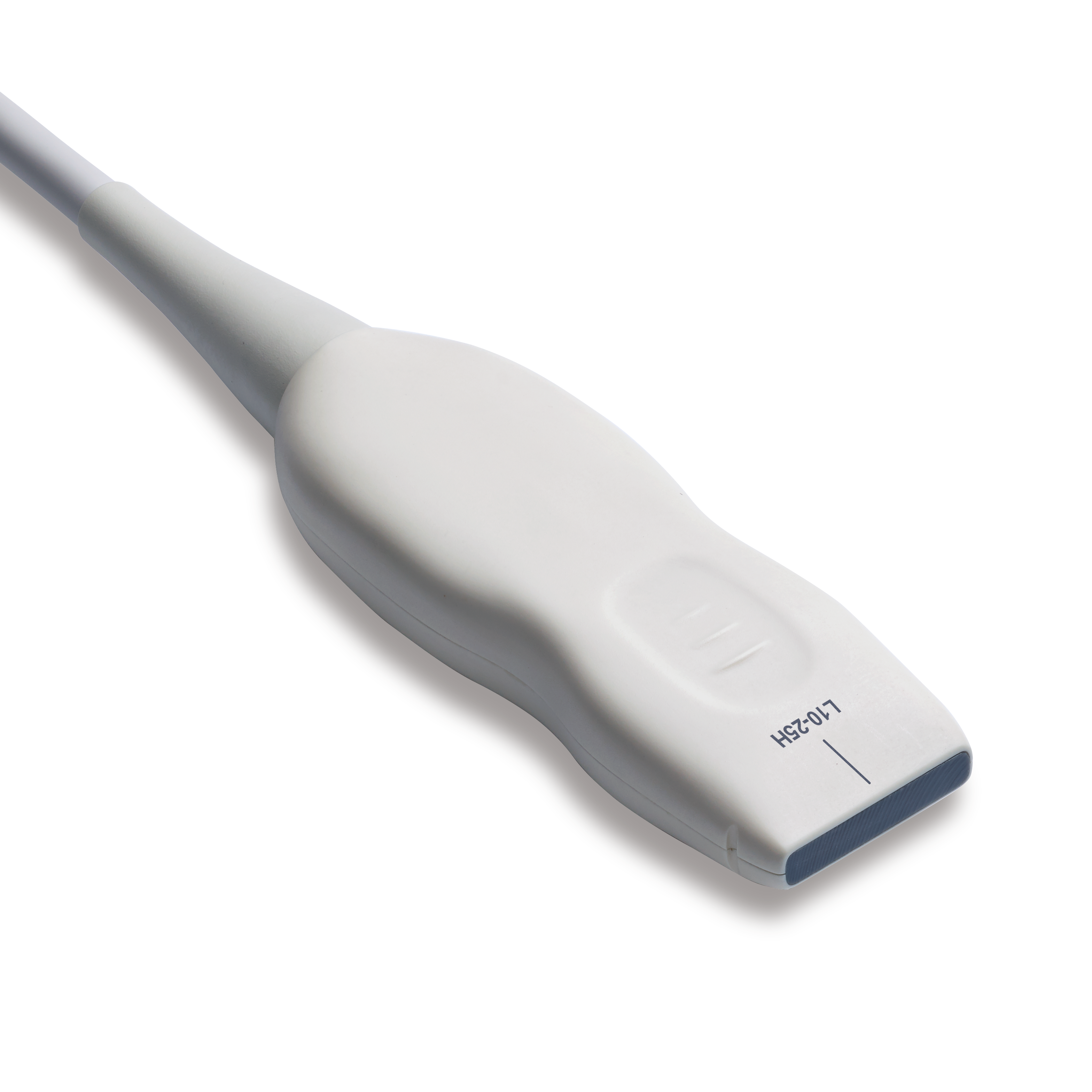

Linear Probe 1

L10-25H

Wideband Ultra High Freq. Linear (10~25 MHz)

Application:

Vascular, MSK, Small Parts, EM

Linear Probe 1

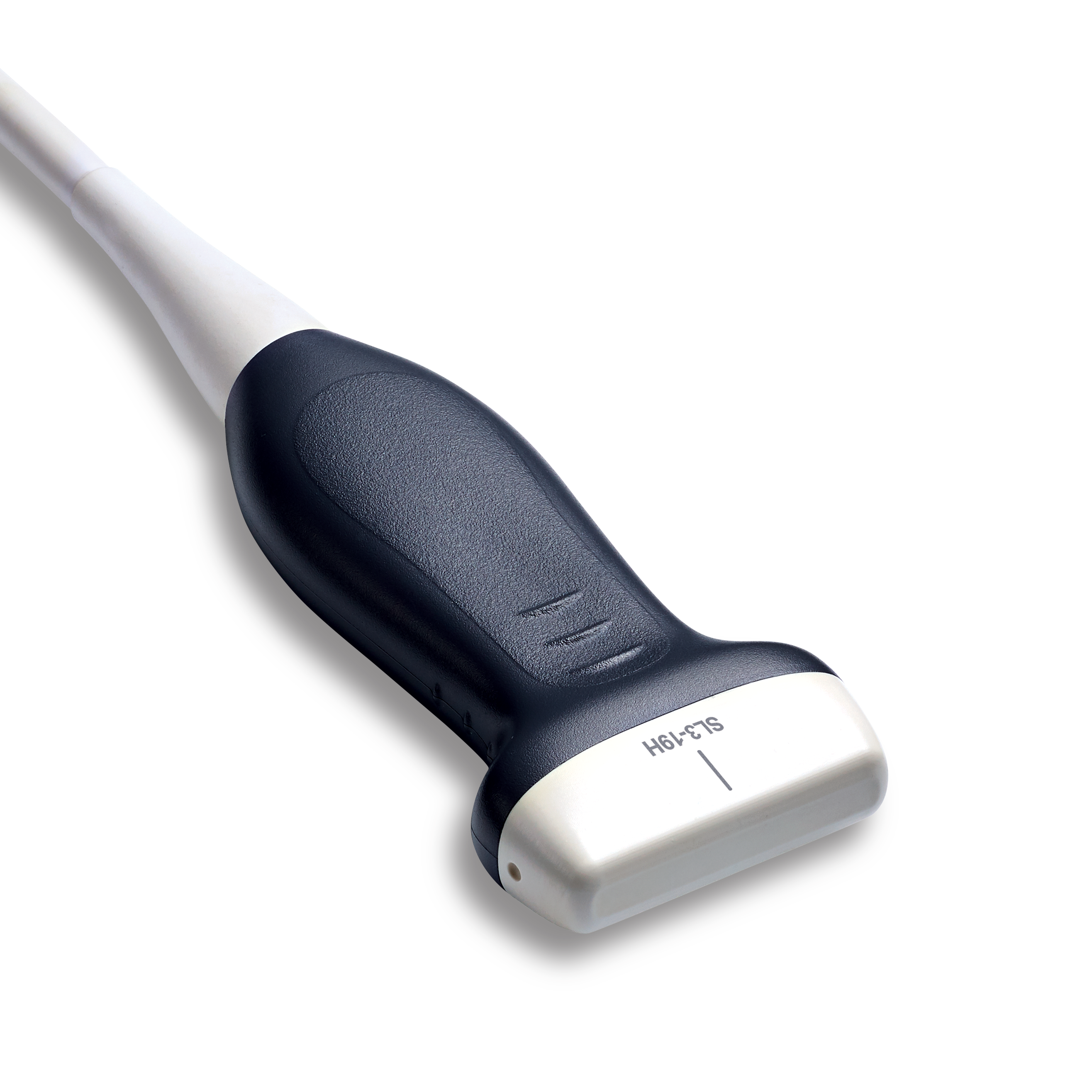

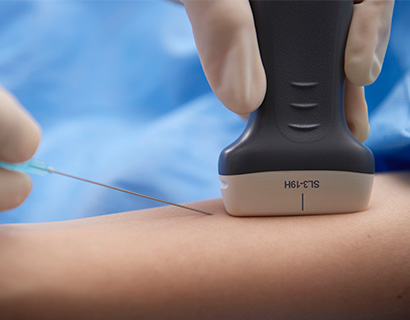

SL3-19H

X+ Crystal Signature™ linear transducer(3~19MHz)

Application:

MSK, Vascular, Small Parts, Breast, TCD, Abdomen, Pediatric, Gynecology, Obstetrics, EM

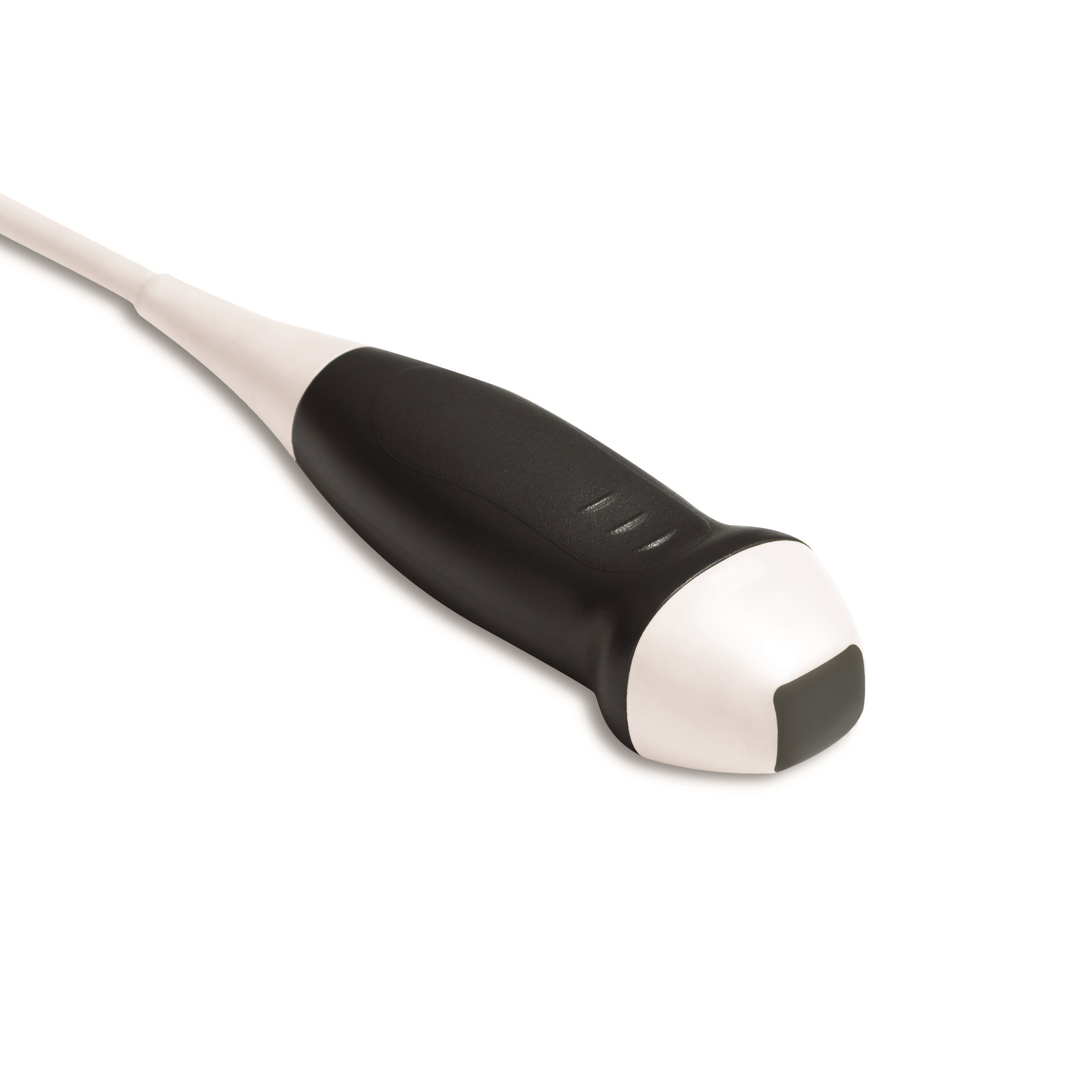

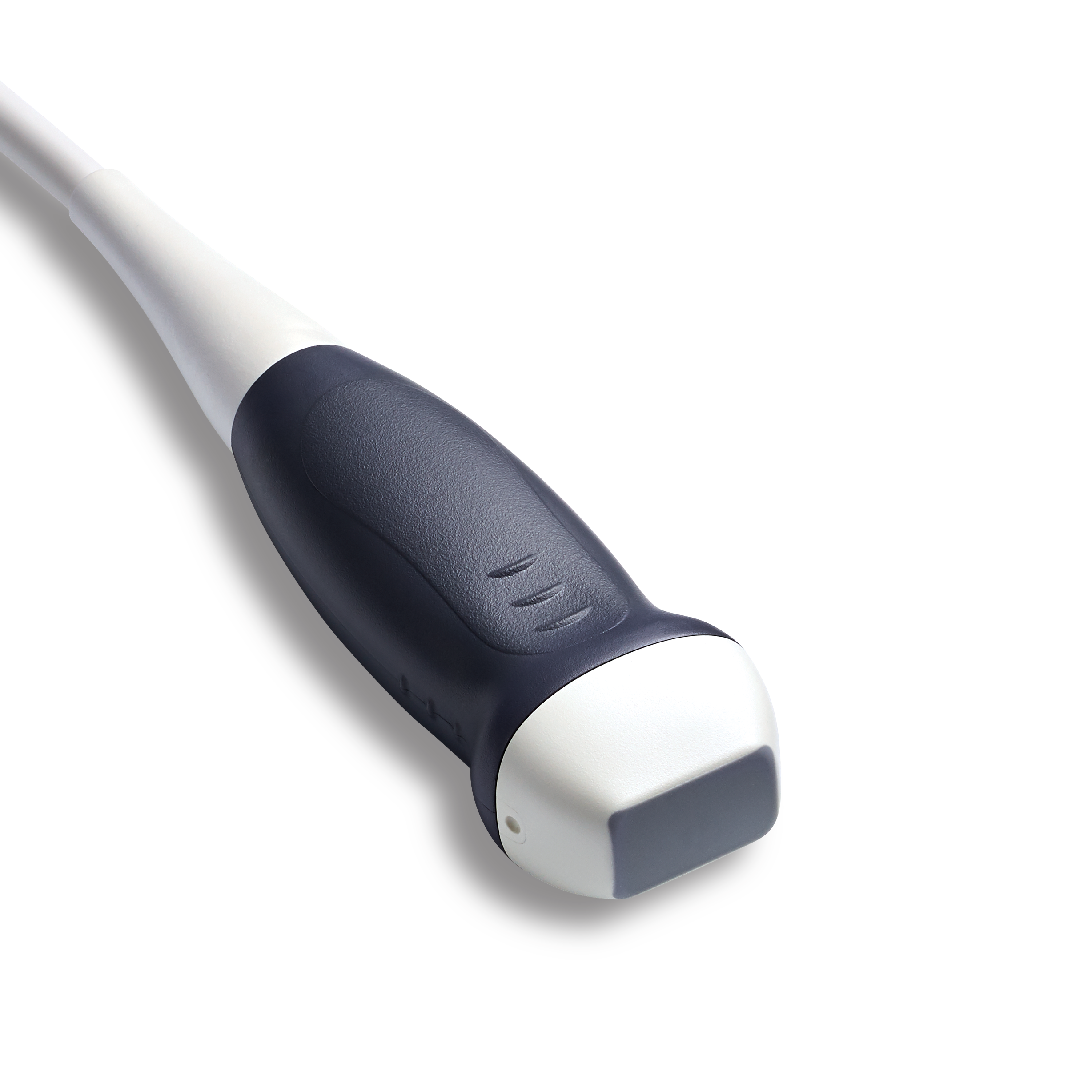

Phased Array Probe

SP3-8T

Phased array transducer (3-8MHz)

Application:

Abdomen, Cardiac, EM, Pediatric

Phased Array Probe

MP1-5X(NEW)

X+ Crystal Signature™ phased array (1~5MHz)

Application:

Cardiac, TCD, EM, Abdomen, Pediatric

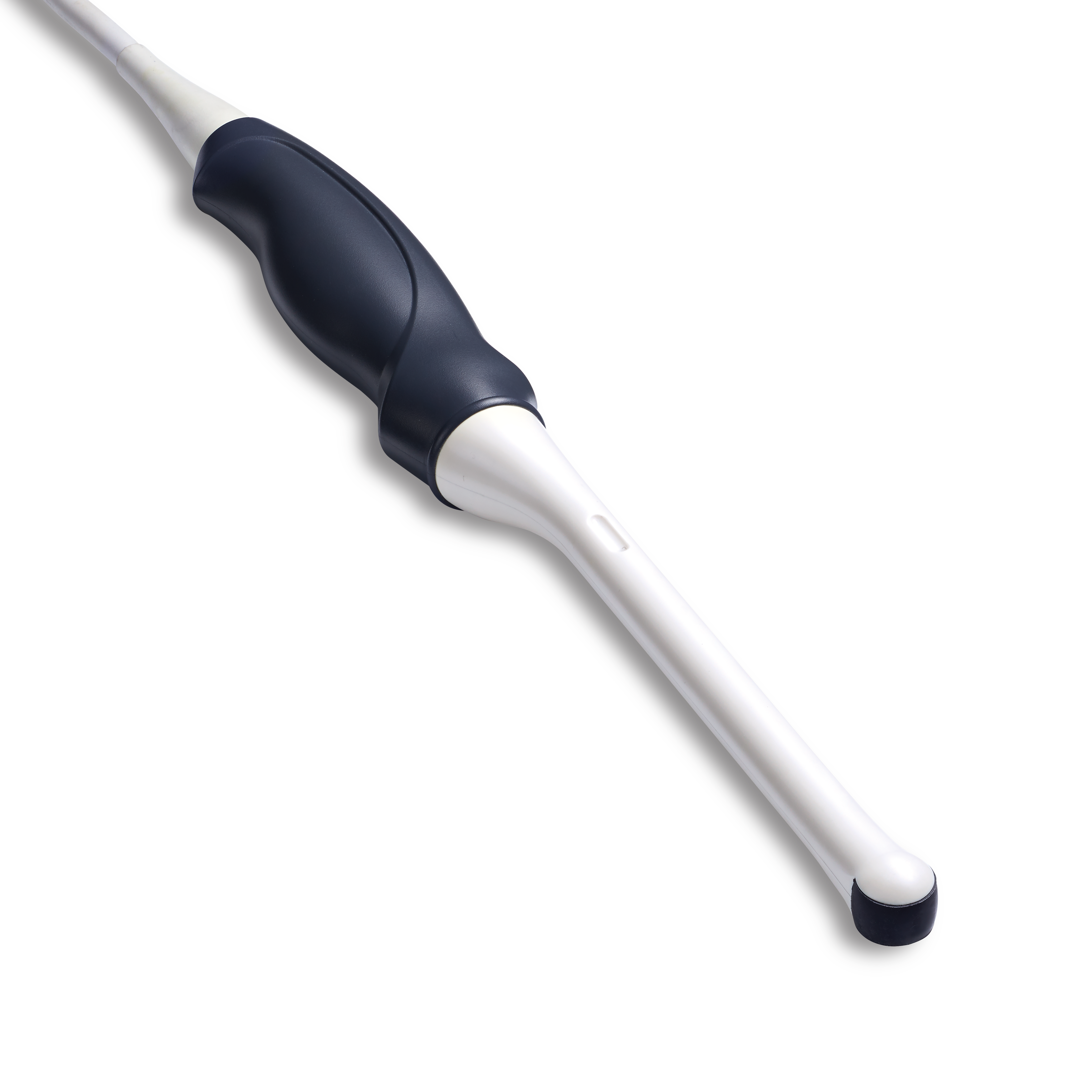

Endocavity Probe

EV2-11H

X+ Crystal Signature endocavity transducer(2~11MHz)

Application:

Gynecology, Obstetrics, Urology, EM

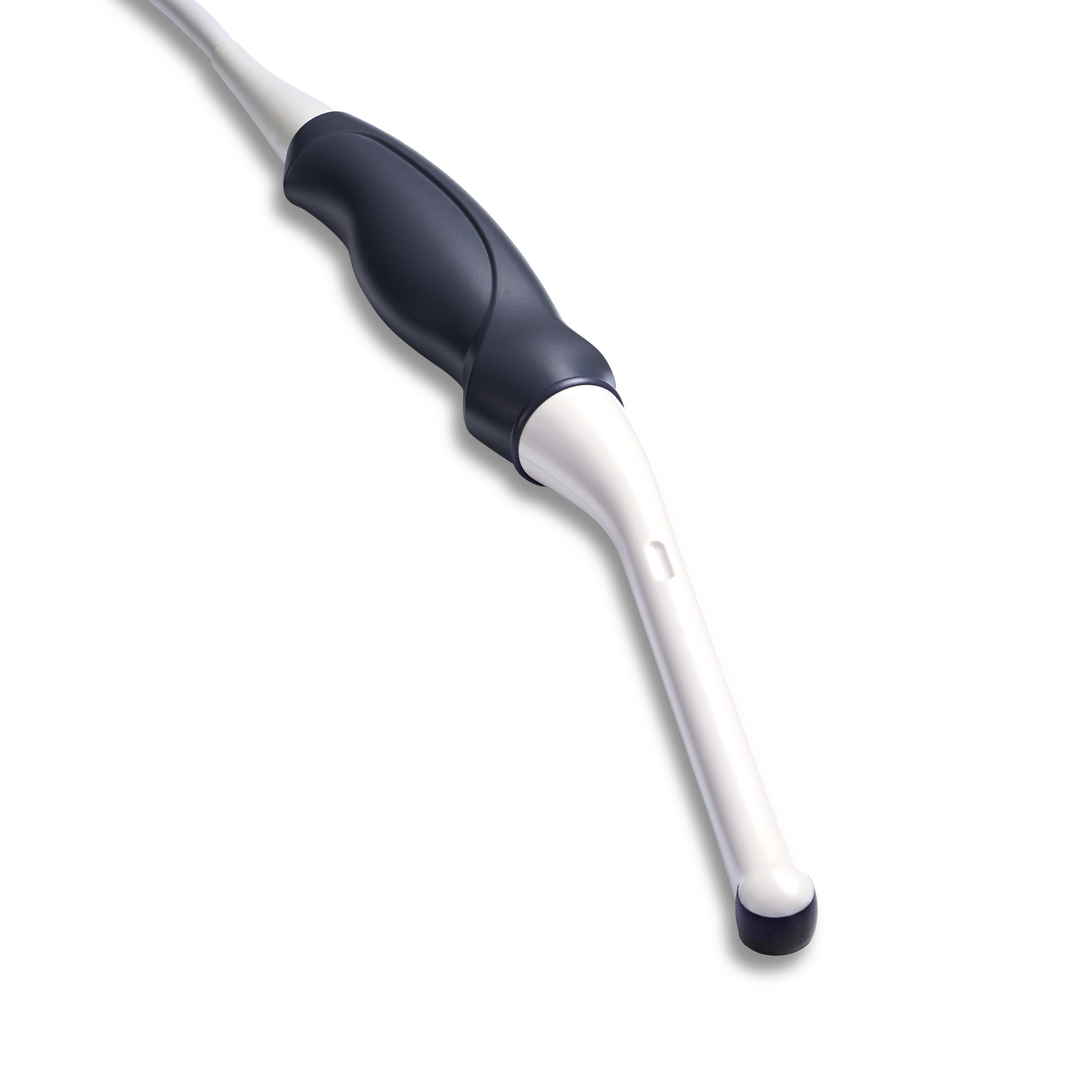

Endocavity Probe

EC2-11H

X+ Crystal Signature endocavity transducer(2~11 MHz)

Application:

Gynecology, Obstetrics, Urology, EM

There is no content.

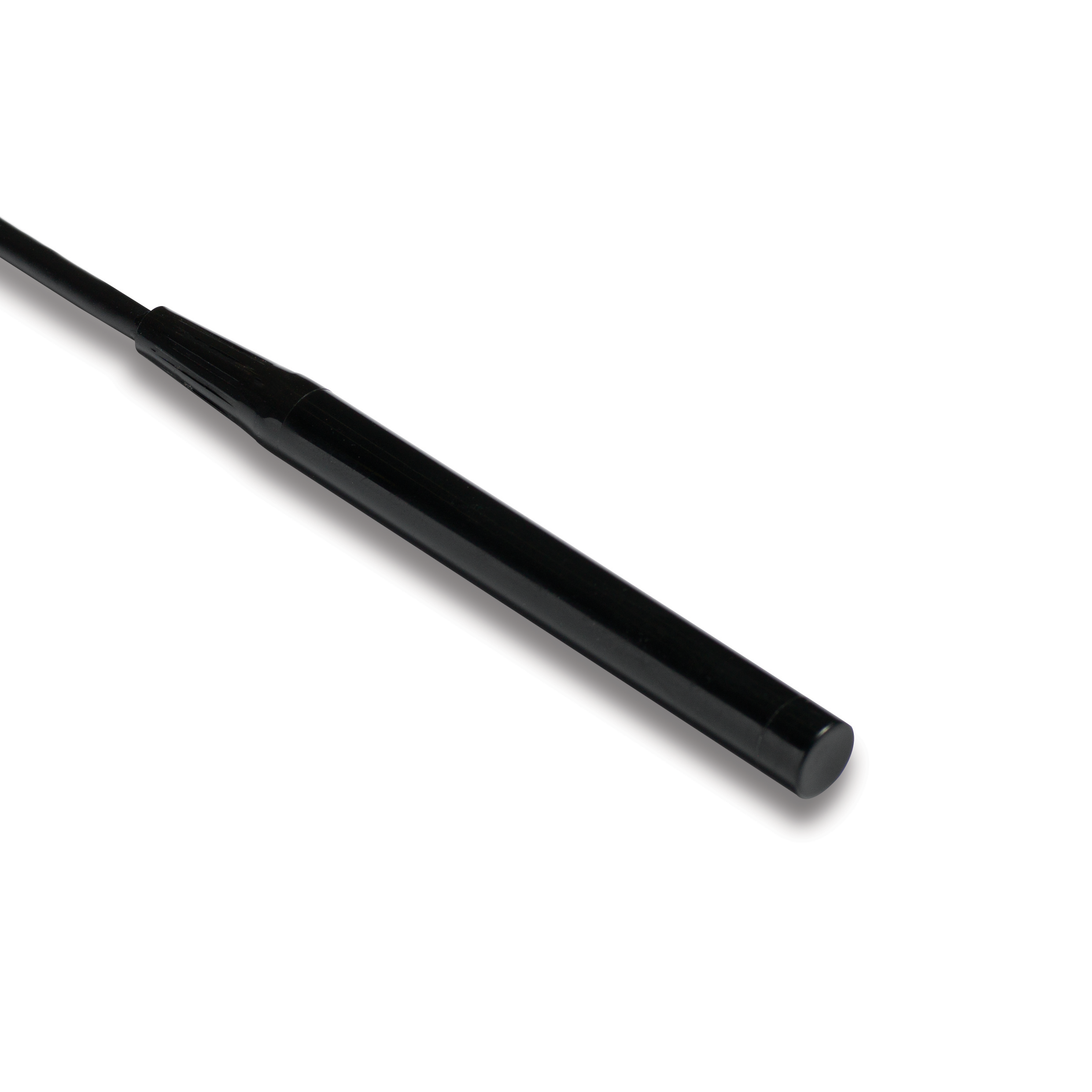

Specialty Probe

CW5.0

Pencil type transducer (5.0MHz)

Application:

Cardiac

Specialty Probe

CW2.0

Pencil type transducer (2.0MHz)

Application:

Cardiac
